Unimac 70L 2.2kW Commercial Air Compressor, 280L/min 116PSI, Brushless Motor, Certified Tank, Long Service Life

The Unimac ACM-700c Belt Driven Air Compressor combines strength, durability, and efficiency to meet the needs of professionals and serious DIYers.

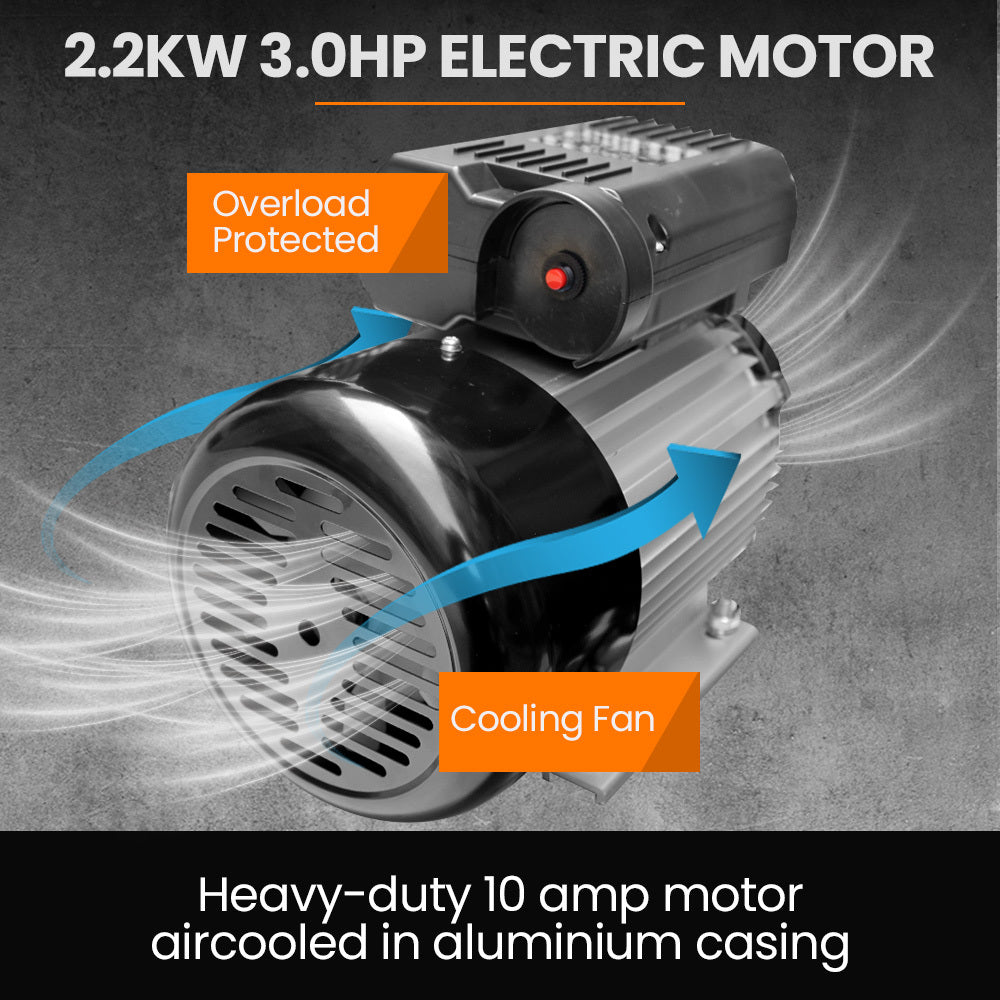

ELECTRIC MOTOR AND BELT DRIVE
This system is a 3HP powerhouse that delivers exceptional airflow for heavy-duty tasks. The belt-driven design ensures reliability and longevity with smoother and more efficient performance. An automatic pressure control switch guarantees hassle-free and ease of use. The electric motor also has an overload protection circuit to safeguard it from damage in extreme environments.

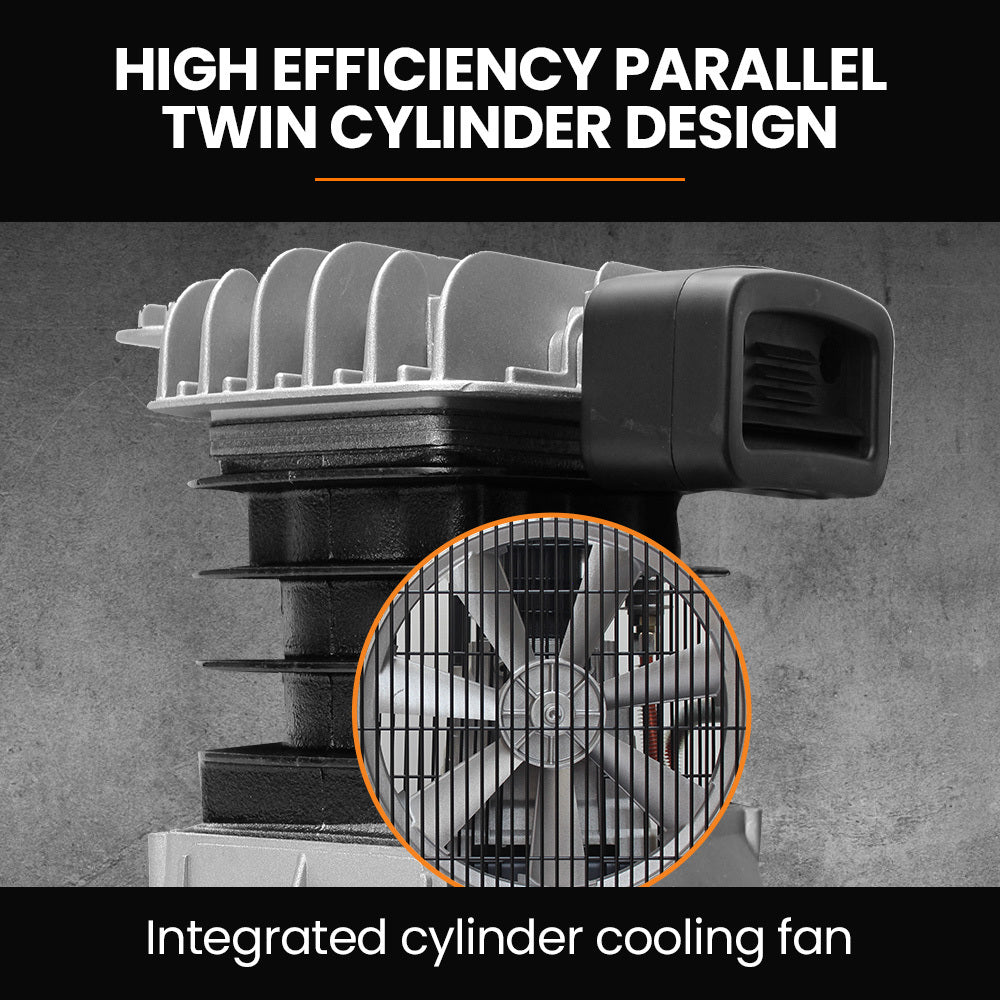

COMPRESSOR MOTOR

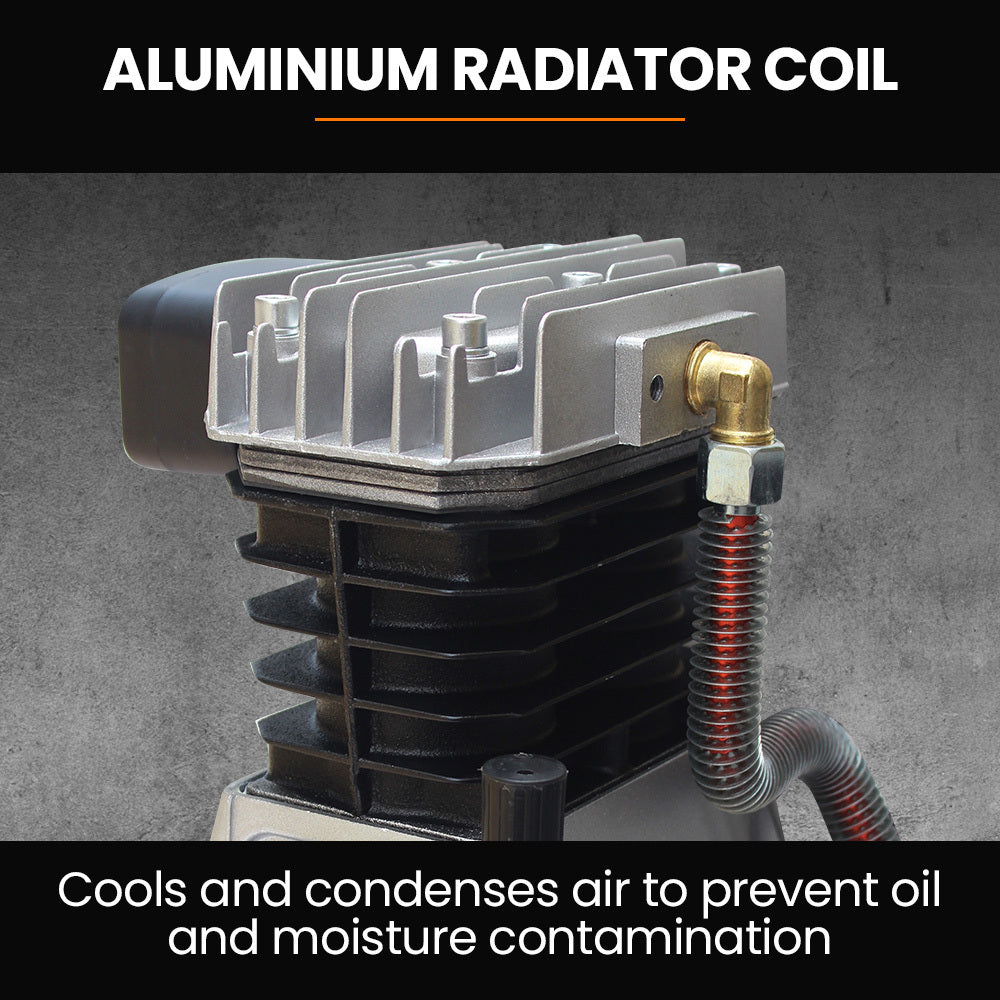

The heart of this machine is a robust cast iron parallel twin-cylinder compressor with aluminium pistons. An integrated aluminium after-cooler, assisted by the integrated fan in the drive pulley, ensures less moisture and contamination in your air hose. The cooler output air temperature also contributes to the compressor's overall efficiency and performance. The unit also features a pump speed of 920 rpm and a duty cycle of 0.75, ensuring consistent and reliable performance. The pump has an outstanding air displacement of 280L/Min (9.9 CFM), giving it powerful air delivery for demanding applications.

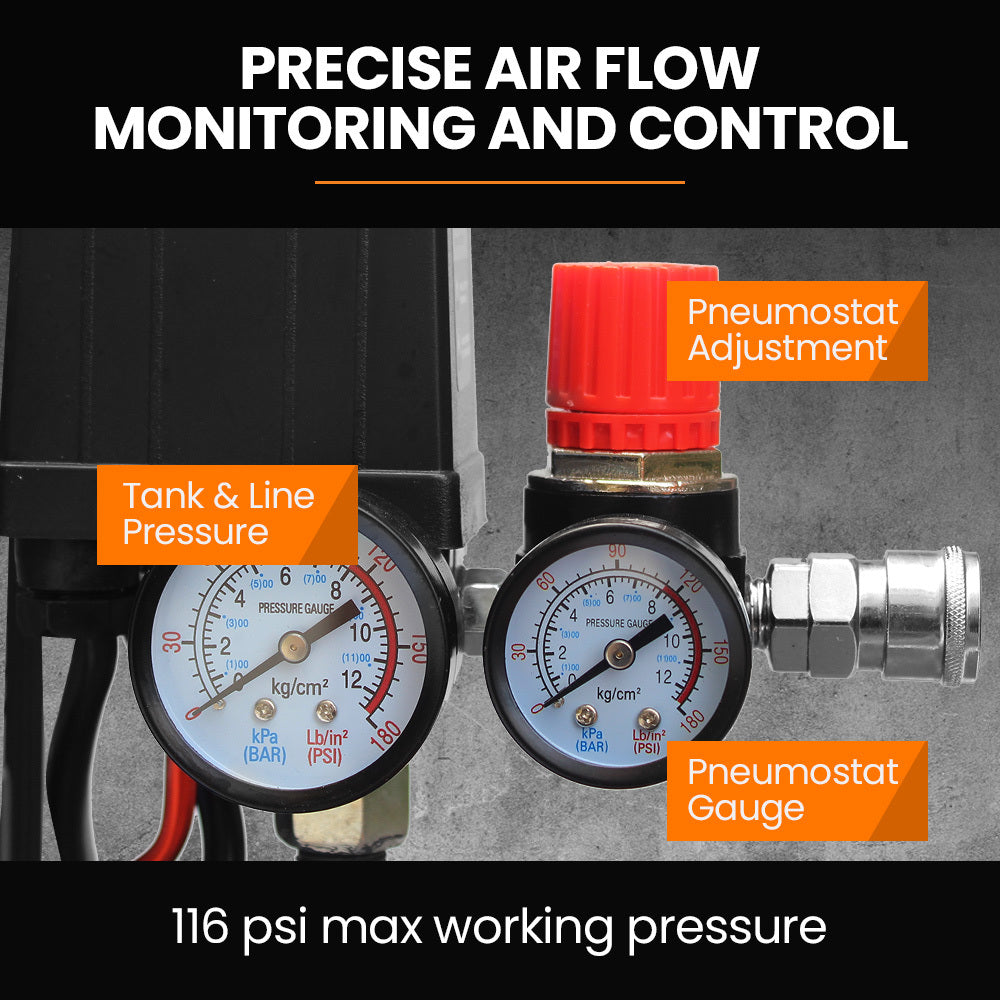

AIR OUTPUT AND MONITORING
The Unimac ACM-700c features air output settings and monitoring. Designed for precision and control the dual gauges allow monitoring of tank, line and pnuemostat pressure, while dual outlets offer the convenience of using two tools simultaneously. The max working pressure is 116PSI (8 bar) with a restart pressure of 86PSI (6 bar), providing a reliable operating range. The free air delivery of 200L/Min at 7 bar maintains consistent performance under pressure, ensuring a steady and reliable air supply for your pneumatic tools.

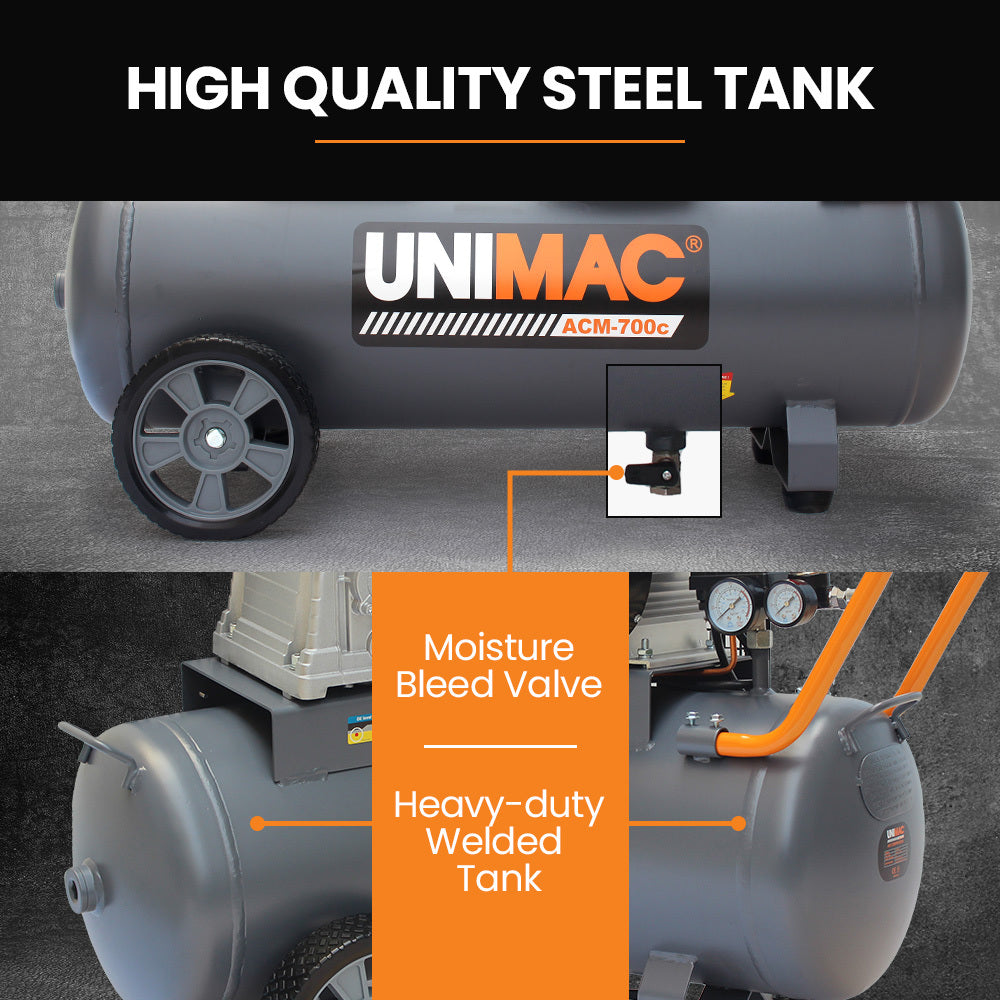

TANK CONSTRUCTION
The 70L steel tank provided extended run times. Its durable tank construction is built to withstand rigorous use, and the welded cast steel cylinder chamber has welded outlet and inlet ports and a welded moisture bleed port with an easy-to-use quarter-turn valve.

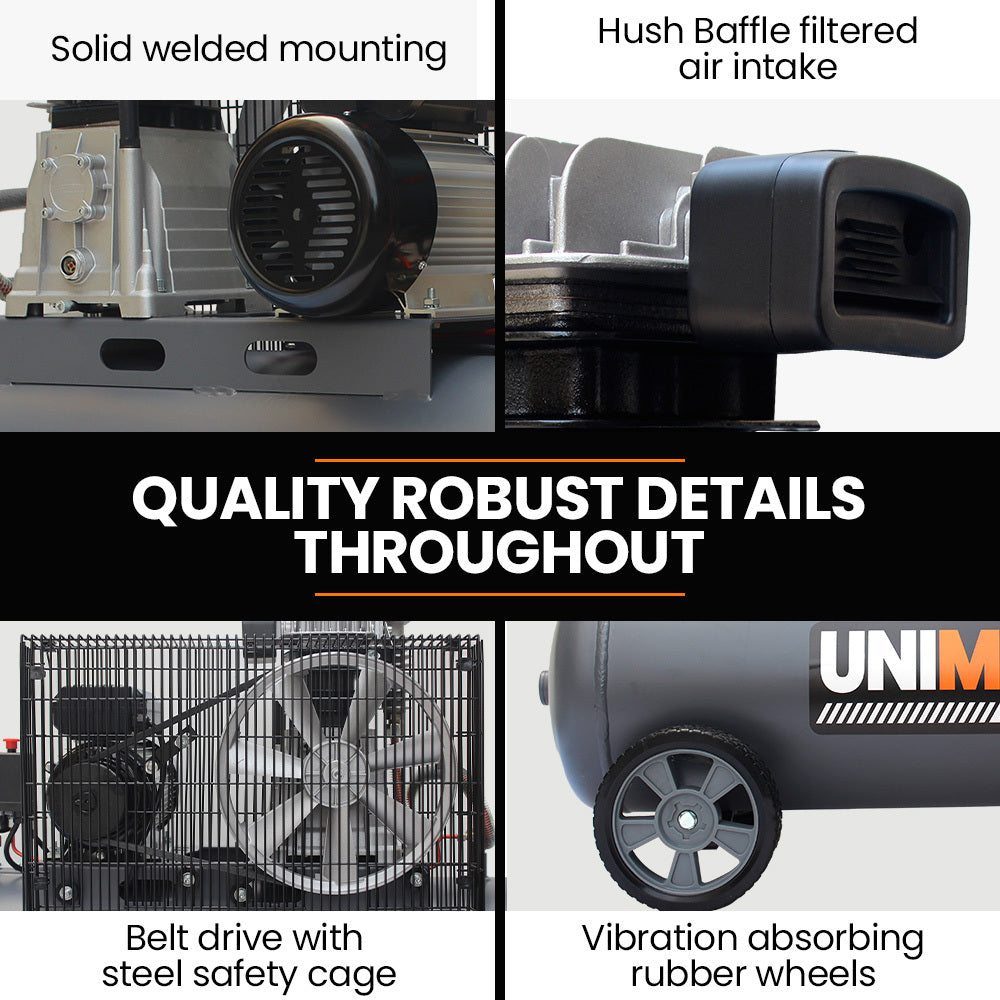

SAFETY AND CONVENIENCE
Convenience and safety are the hallmarks of the Unimac ACM-700c. Its portable design includes a removable handle and rubber tyres, making it easy to transport and manoeuvre around your workspace. Rubber feet absorb vibration and prevent hopping action. Operating at a quiet 68 dBa (Lpa), this compressor is ideal for indoor use, producing less noise and a more comfortable working environment. It also features an emergency shut-down plunger switch and an electric motor control with an overload protection circuit breaker.

Invest in the Unimac ACM-700c and experience superior power, unmatched reliability, and ultimate convenience.

Unimac – Powering Your Potential

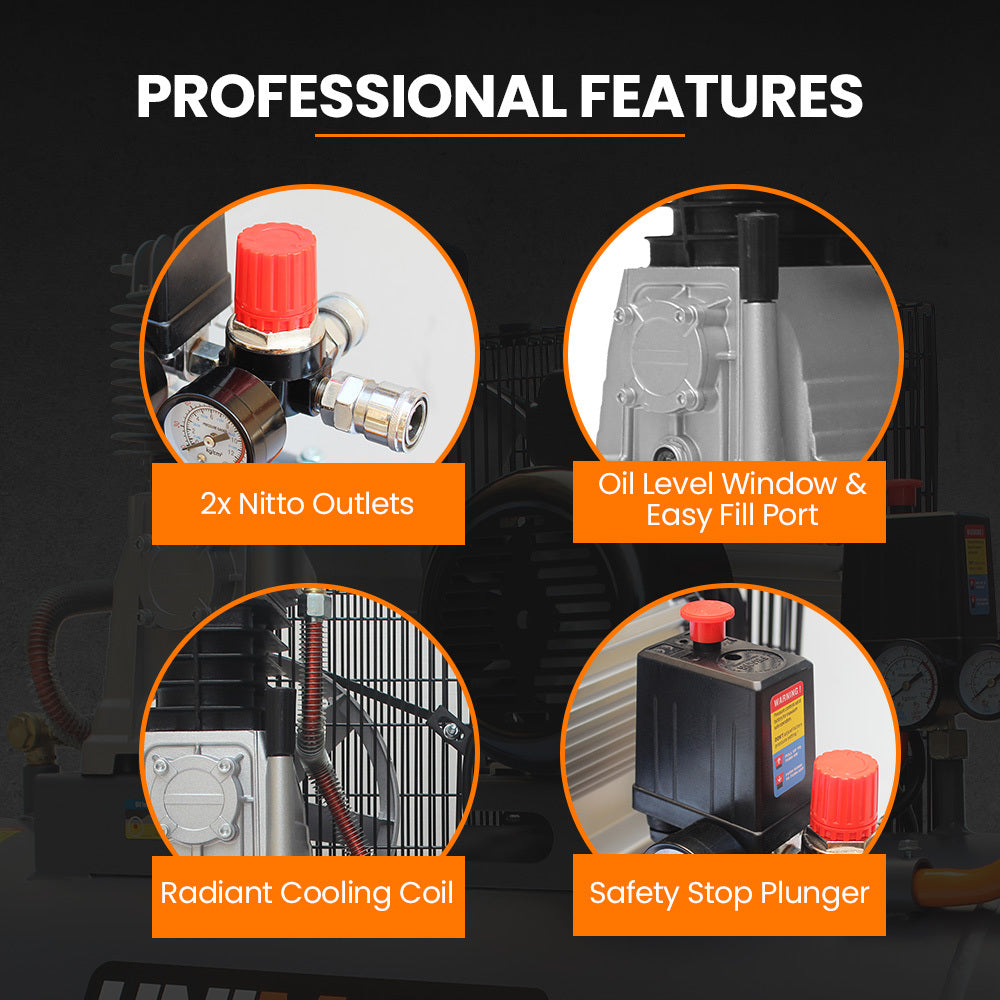

• 3hp motor delivers exceptional power for heavy-duty tasks
• Durable cast iron cylinders and aluminium pistons
• Large 70L steel tank
• 116PSI working pressure
• Convenient dual Nitto air outlets
• Powerful 280L/Min (9.9 CFM) air displacement
• 200 L/Min free air delivery at 7bar (7.0 CFM) offers consistent performance
• Easy-to-use moisture bleed valve, large gauges, safety off button, and more
• Separate tank and line gauges for accurate air pressure monitoring
• Operates at a quiet 68 dBa (Lpa)
• Aluminium radiator for optimal output air temperature
• 920 rpm pump and 0.75 duty cycle offer reliable performance
• Easy-to-use moisture bleed valve, large gauges, safety off button, and more

Specification

• Brand: Unimac
• Model: ACM-700c
• Receiver Capacity: 70L
• Input Voltage: 240V
• Motor Input: 230~240V 50Hz
• Air Displacement: 280L/Min (9.9 CFM)
• Free Air Delivery: 200L/Min (7.0 CFM)
• Working Pressure: 116PSI (8bar)
• Restart Pressure: 86PSI (6bar)
• IP Rating: IP20
• Power Rating: 2.2kW
• Power Plug: Standard 10A (SAA Approved)
• Note: No assembly is required

IN THE BOX

• 1 x Unimac ACM-700c Air Compressor
• Note: User Manual is accessible online

SIZE WEIGHT

• Carton Weight: 64kg
• Carton Dimensions (L x W x H): 102 x 39 x 82 cm
• Product Weight: 56 kg
• Product Dimensions (L x W x H): 103 x 39 x 75 cm

SKU: TOLACMUM07BA
