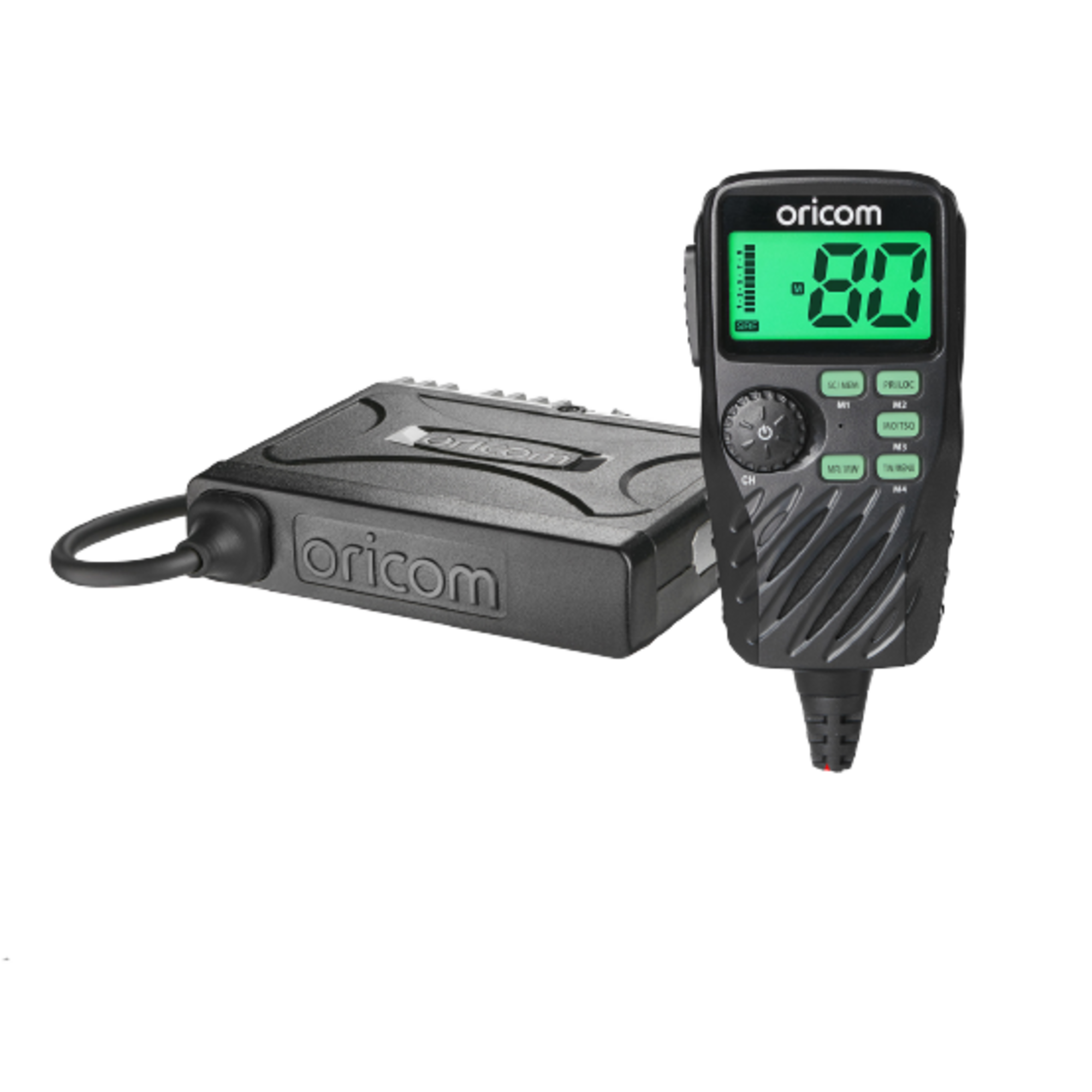

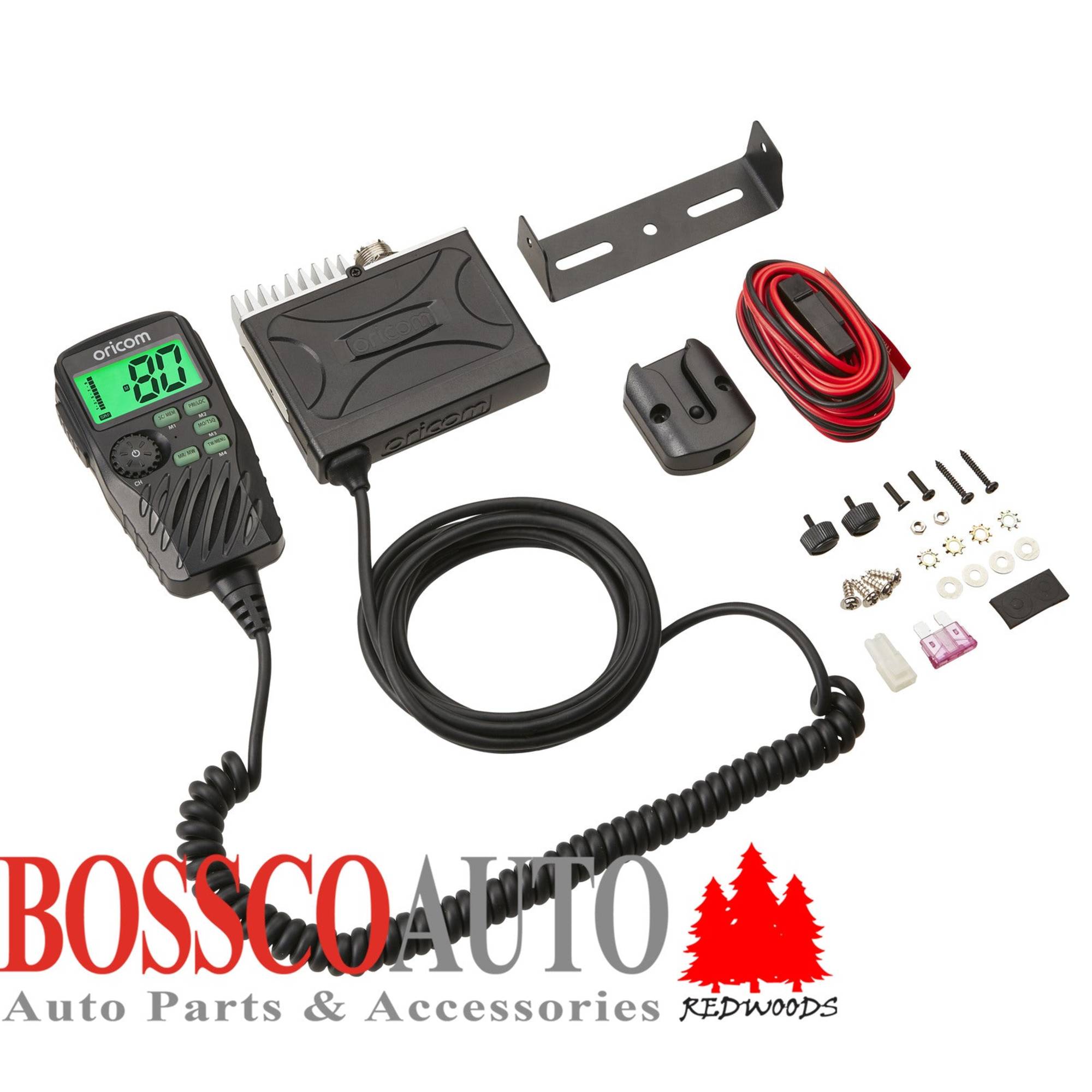

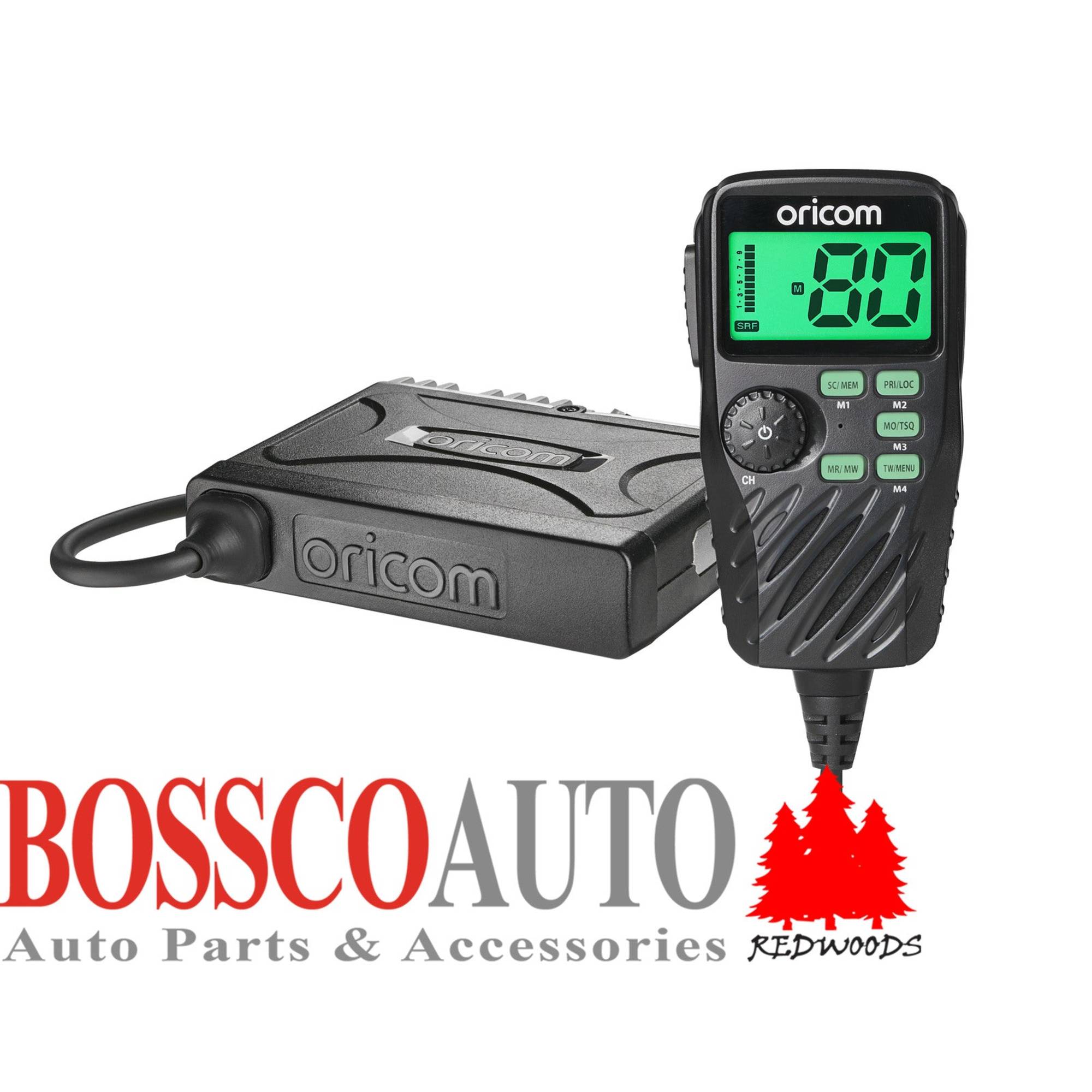

Oricom UHF390 5 Watt 80 Channel UHF Radio With Remote Microphone 5 YR WTY 2012
Tax excluded. Shipping calculated at checkout
• 80 Narrowband channels*
• 5 watts (max TX power)

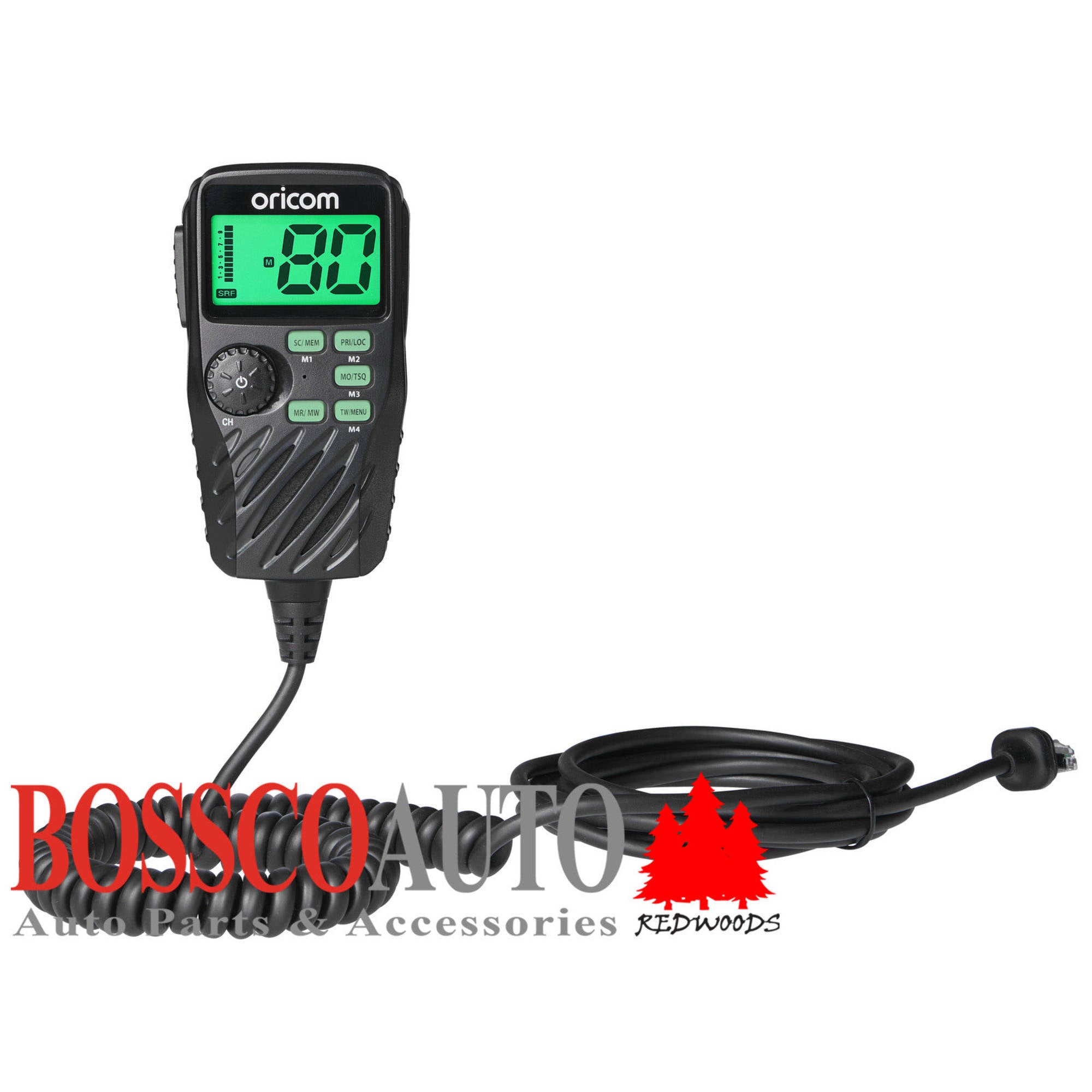

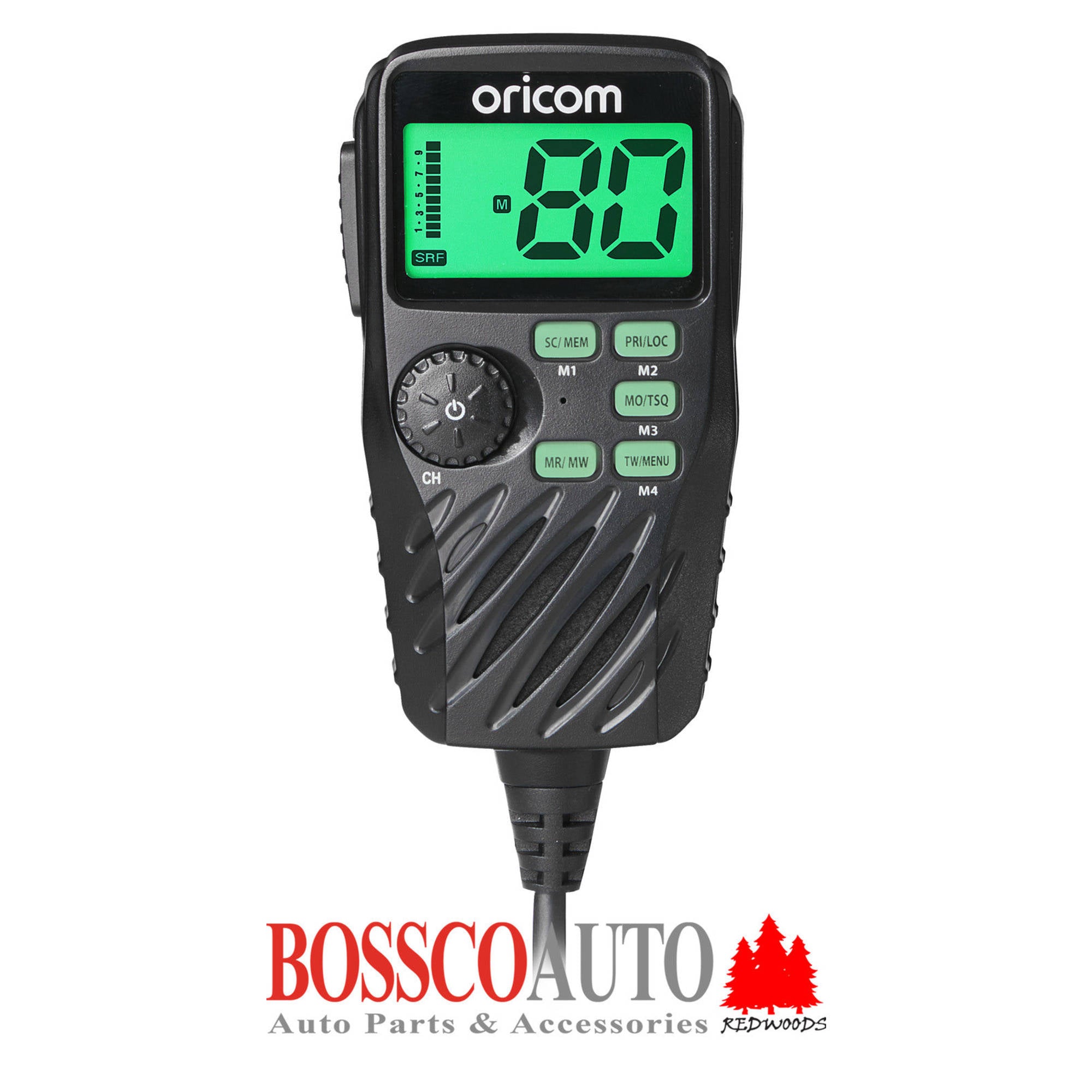

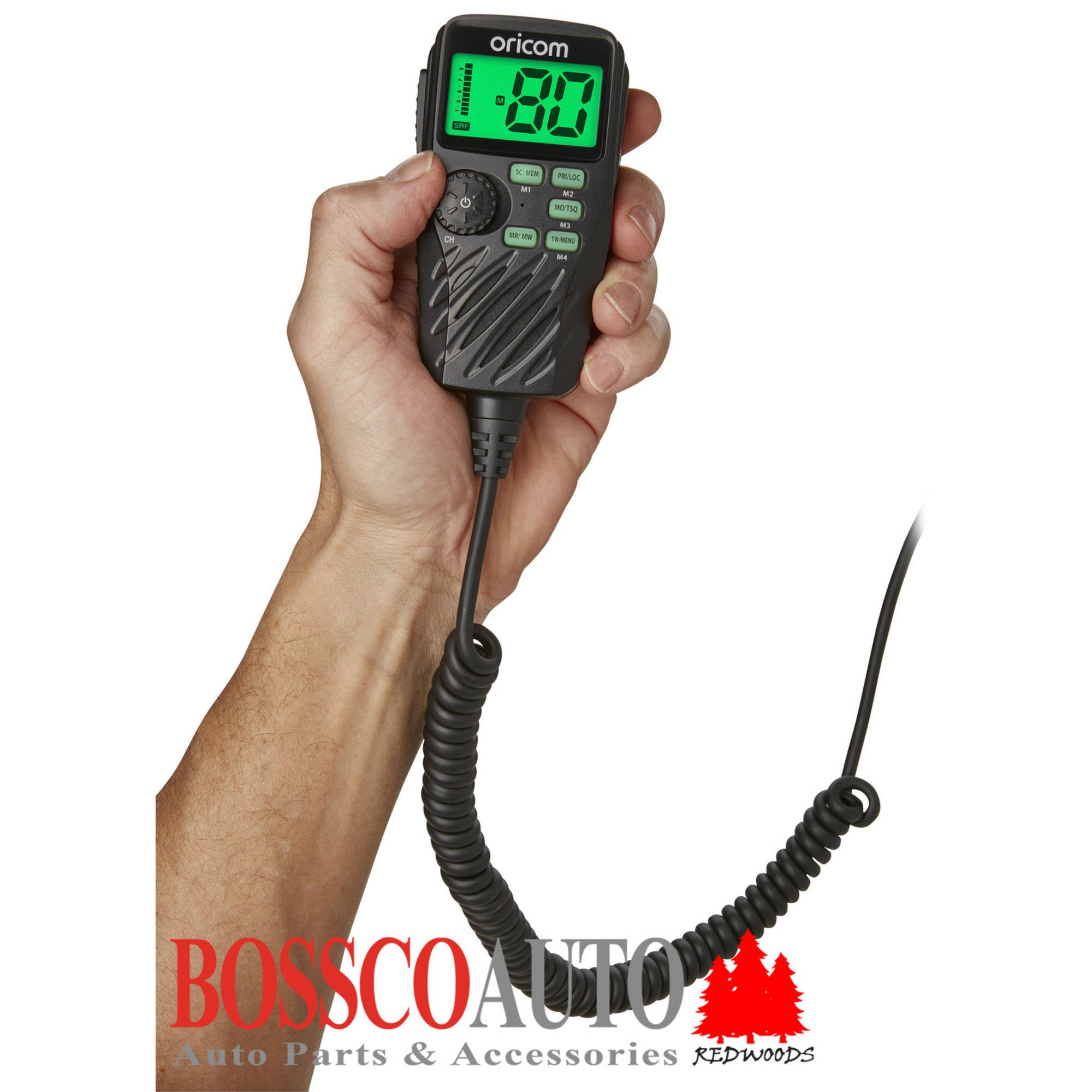

• Heavy duty controller speaker microphone
• Ultra compact transceiver
• Rotary volume & channel knob
• CTCSS and DCS
• Tri colour backlit LCD display (Amber/Red/Green)
• Duplex (range extender)
• Open/Priority and Instant Channel Scan
• Digital squelch control
• Busy channel lockout
• Rugged chassis construction with integrated heat sink
| Compliance | AS/NZS 4365:2011 |
|---|---|
| Frequency Range TX | 476.425 - 477.4125 MHz |
| Number of TX/RX Channels | 80 UHF CB |
| Channel Spacing TX/RX | 12.5KHz |
| Operating modes | Simplex, Repeater TX offset (+750kHz) |
| Selcall ID | 5 Digit with alpha display |
| Scanning Speed | 130 msec per channel |
| Antenna Impeadance | 50 Ohms |
| Operating Volts nominal | 13.8 VDC |
| Operating Volts Range | 10 to 15 VDC |
| Over Voltage Protection | Diode and voltage regulator |
| Over Current Protection | 2 Amp fuse |
| Reverse Polarity Protection | Shunt diode |
| Frequency Stability | +/- 5ppm |
| Transmitter | |
| RF Output Power | Nominal 5watts |
| Modulation | F3E (FM) |
| Maximum Deviation | 2.5kHz |
| Spurious Emissions | < -30 dBm |
| TX Audio pre-emphasis | + 6dB/octave from 300Hz to 3kHz |
| Current Consumption during TX | 1.6 Amps with 50 Ohm antenna termination |
| Reciever | |
| Circuit Type | Dual conversion superheterodyne |
| IF Frequencies | 1st IF = 21.4MHz , 2nd IF = 450kHz |
| Current Consumption during RX | 200mA |
| Sensitivity | < -123dBm at 12dB SINAD |
| Sensitivity Receive only channels | < -110dBm for 12dB SINAD |
| Selectivity | +/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB |
| Intermodulation Immunity | > 70dB |
| Spurious Immunity | > 70dB |
| Audio Output Power | 3 Watts Maximum |
| RX Audio de-emphasis | -6dB/octave 300Hz to 3kHz |
| Audio frequency response | 300Hz to 3kHz |
| External speaker jacks | One on transceiver one on head unit for optional 8 Ohm mono speaker (3.5mm jack.) |
| Transciever | |
| Dimensions | 135 (d) x 110 (w) x 29 (h) mm |
| Weight | 420g |
