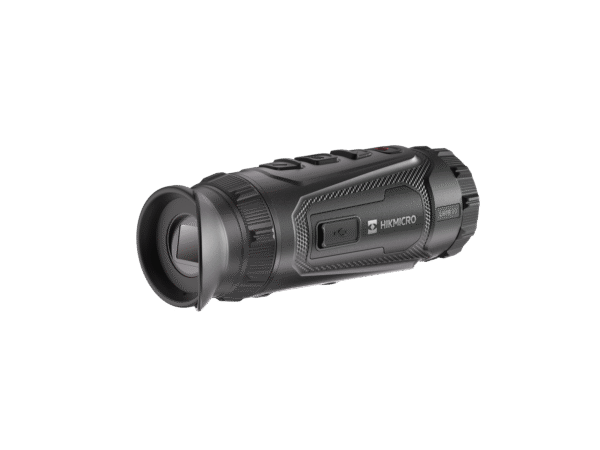

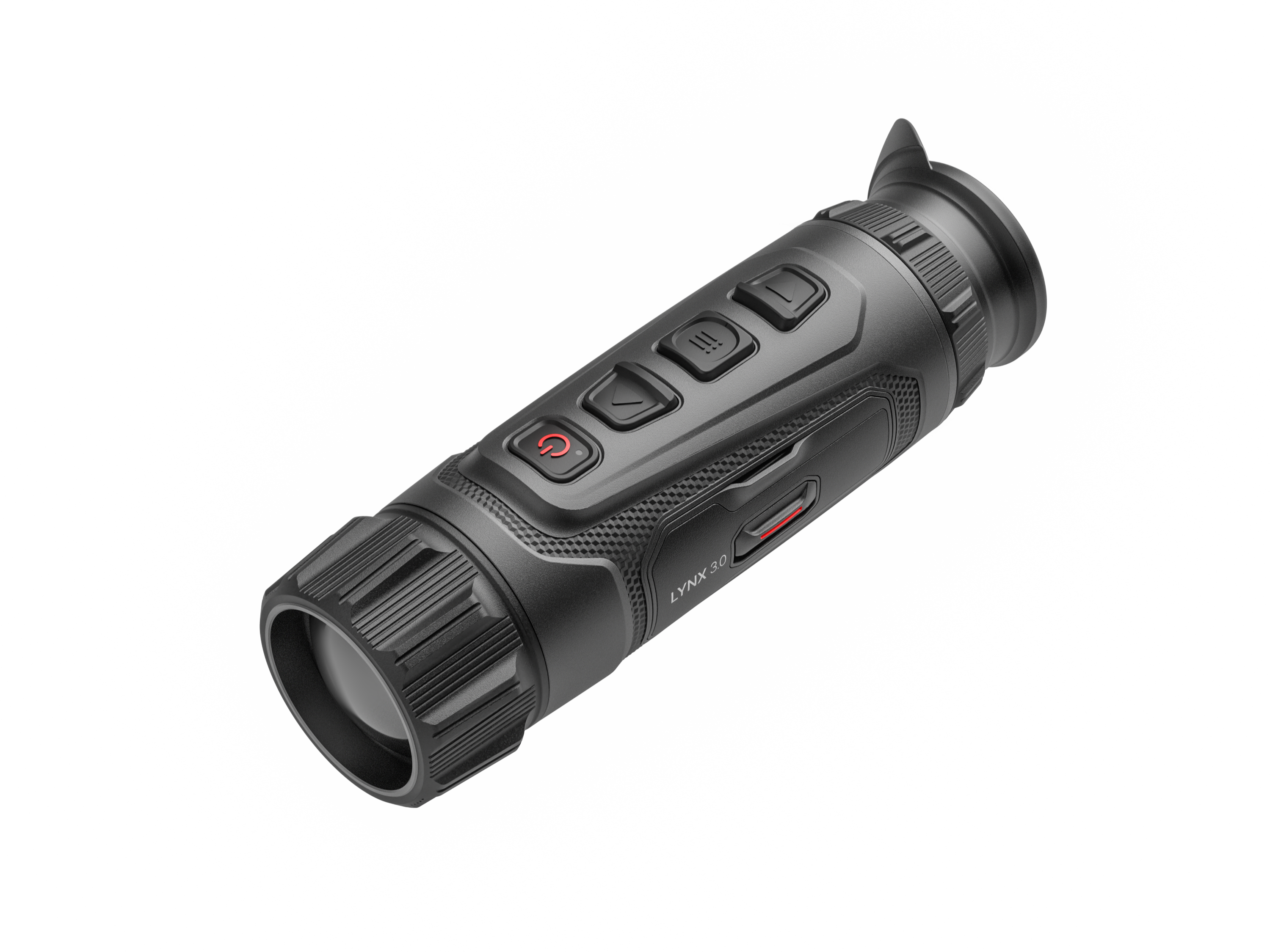

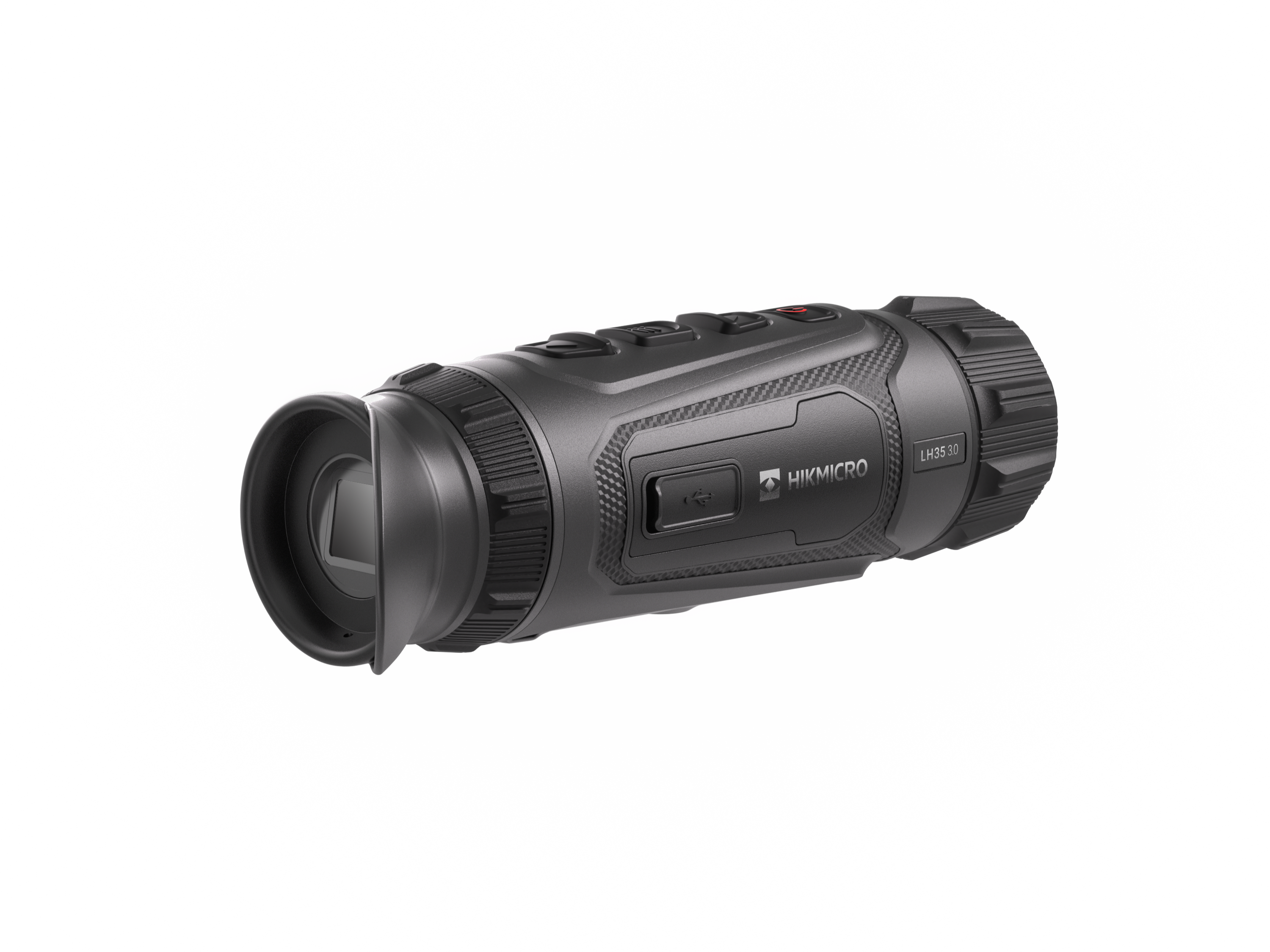

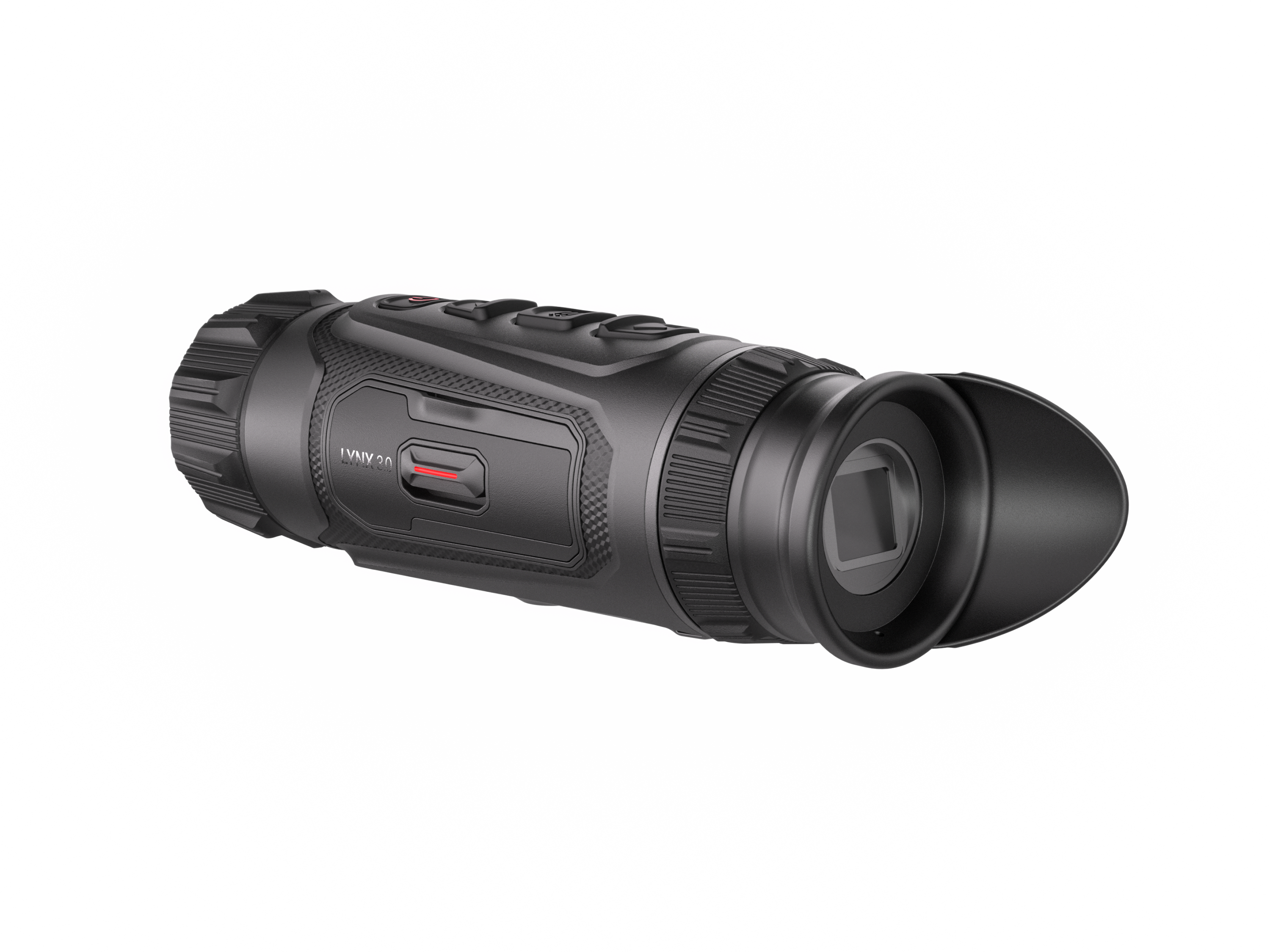

HIKMICRO Lynx LH35 3.0 Thermal Monocular

With a base magnification of 3.4x, a 384×288 detector, and a 35mm F1.0 lens, the LH35 3.0 offers unparalleled performance for professional hunters and mid-to-long-range applications. Its 7.5° (13.1m at 100m) field of view and a detection range of up to 1800m ensure exceptional detail in vast, open spaces, making it the ultimate choice for serious users seeking premium quality with proven shutterless technology.

Features

15mK Ultra-High Thermal Sensitivity

The Lynx 3.0's 15mK thermal sensitivity is among the best in its class, making it easy to detect even faint heat signatures in challenging hunting environments — whether on a foggy morning, in dense woods, or in open fields at night.

AI-Powered Image Pro 3.0 & Zoom Pro Algorithms

HIKMICRO's AI-powered Image Pro 3.0 and Zoom Pro deliver sharp, detailed imagery at both base magnification and when zoomed, making it easy to identify animal outlines and distinguish between species at longer distances.

Pocket Ready: Compact & Lightweight

24mm shorter than before and weighing just 355g, the Lynx 3.0 is built for hunters on the move. Its lightweight, compact design reduces fatigue during long sessions in the field.

Specifications

• Sensor Resolution: 384×288
• Pixel Interval: 12μm
• NETD: Less than 15mK
• Lens (Focal Length): 35mm, F1.0
• Detection Range: 1800m
• Magnification: 3.4x–27.2x
• Display: 0.39'' 1024×768 AMOLED
• Laser Rangefinder: N/A
• Frame Rate: 50Hz
• Field of View (@100m): 7.5°×4.6° / 13.1×8.0m
• Battery Type: Replaceable and rechargeable Li-ion 18650 battery
• Battery Operating Time: 5 hours continuous
• Power Supply: 5V DC, 2A, supports external power and direct charging
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Diopter: -5D to +3D
• Exit Pupil: 6mm
• Working Temperature: -30°C to 45°C
• Protection Level: IP67
• Dimensions: 169.6×53.6×49.5mm
• Weight: 354.5g with battery

What's Included

• HIKMICRO Lynx LH35 3.0 Thermal Monocular
• 2 × rechargeable 18650 batteries
• Battery charger
• USB Type-C cable
• Lint-free cleaning cloth
• Quick start guide
