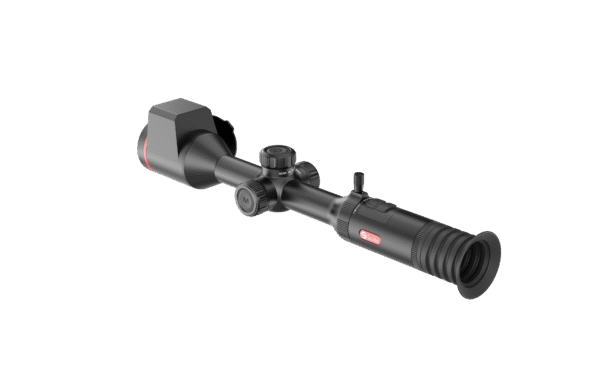

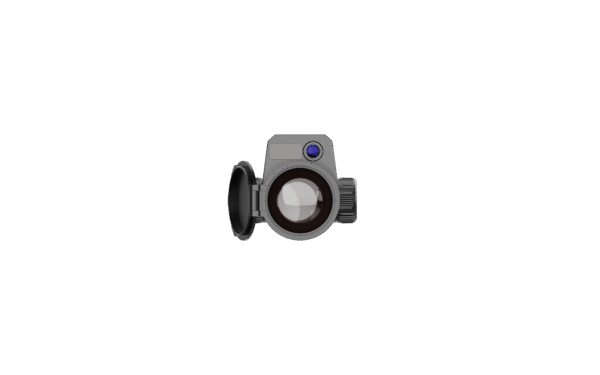

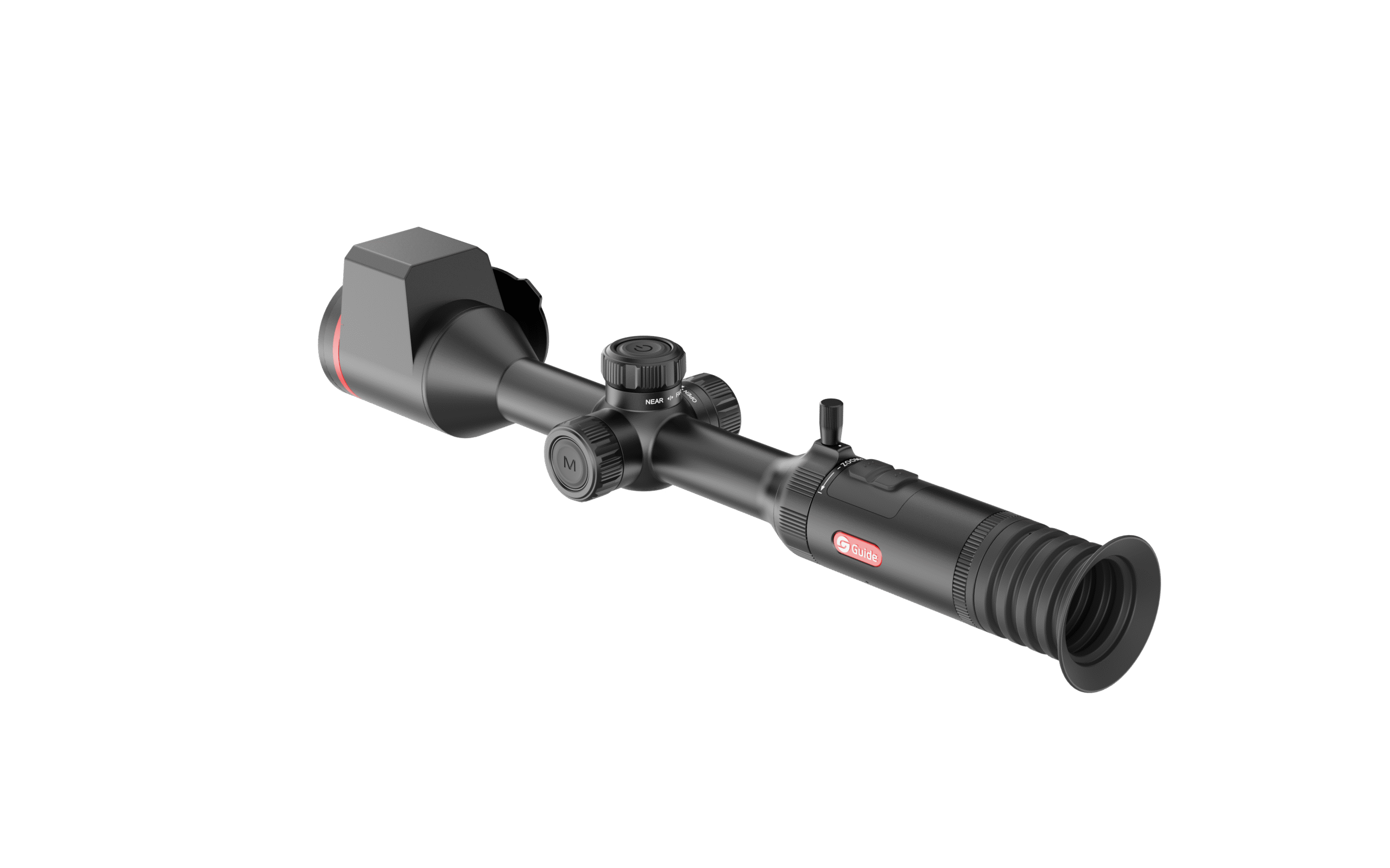

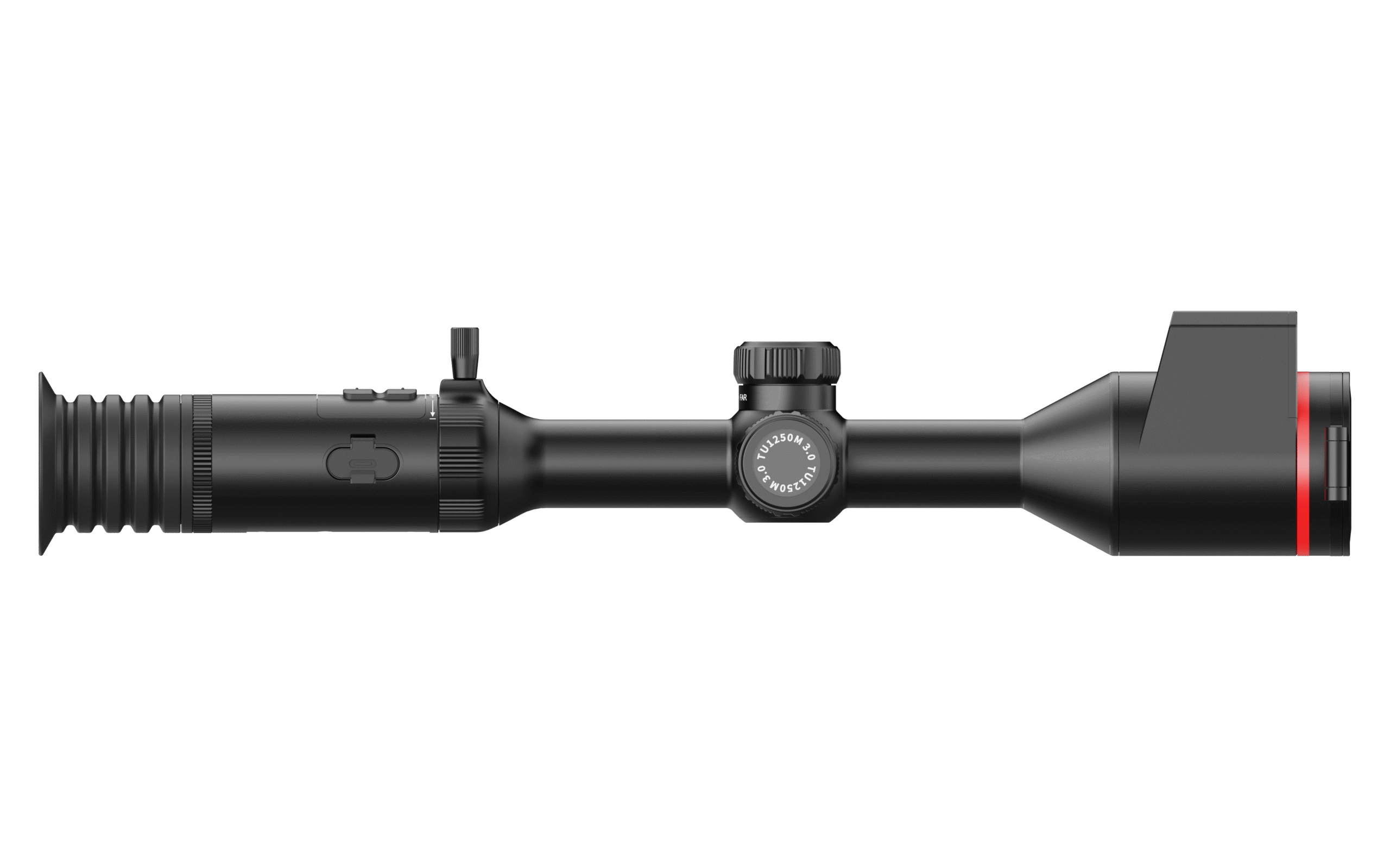

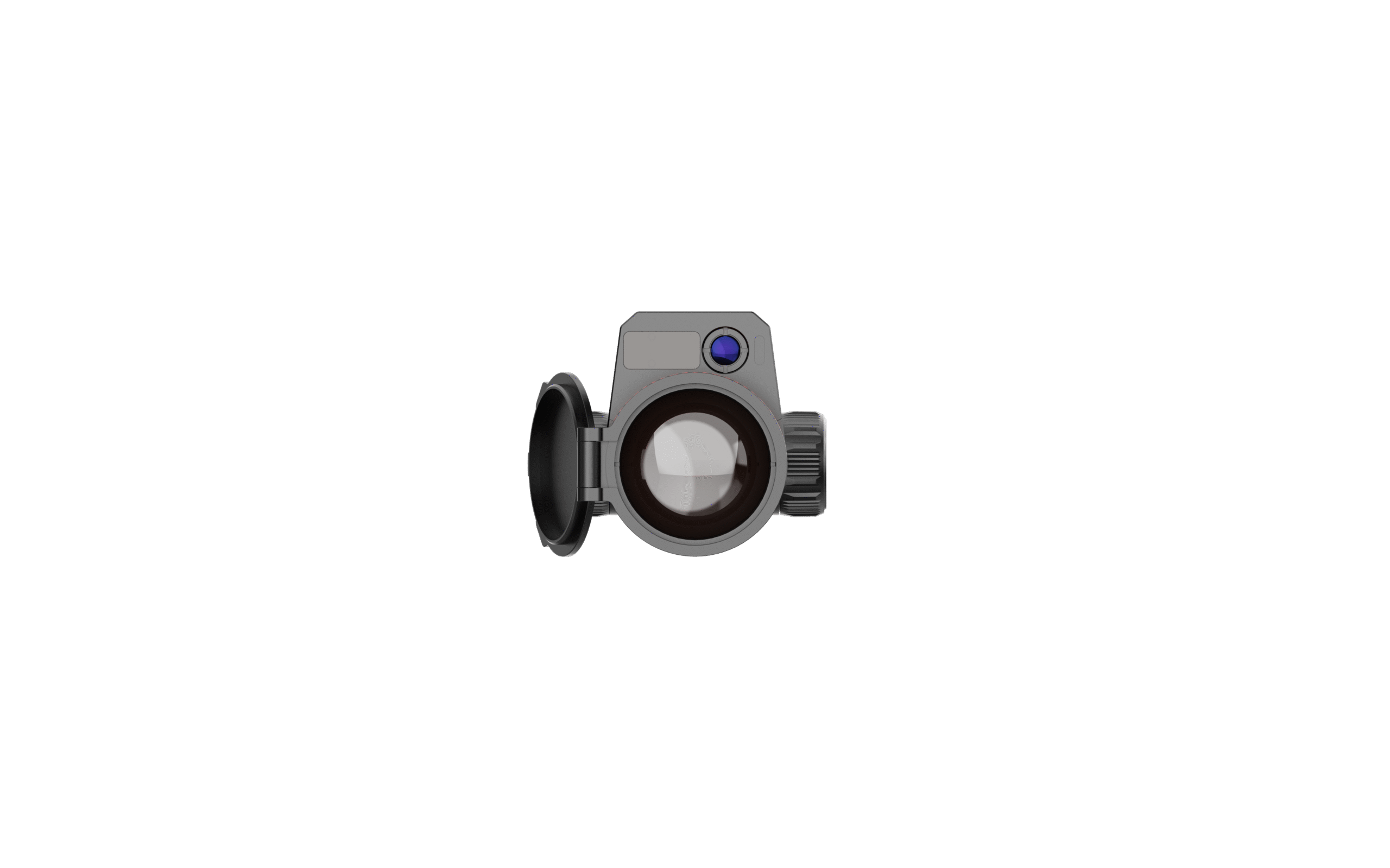

The Guide TU650M 3.0 Thermal Scope is a dual-channel multispectral riflescope from Guide's TU Muo 3.0 Series, pairing a 640 × 512 @12μm thermal detector (NETD below 18mK) with a 50mm F1.0 objective lens and an integrated 1920 × 1080 digital night vision channel through a 35mm F4.0 lens. Switch instantly between thermal, digital day/night, and PIP viewing for a detection range of up to 2600m on thermal, backed by an in-lens laser rangefinder accurate to 1500m with an onboard ballistic calculator.
Built for hard field use, the TU650M 3.0 features Guide's Shutterless 3.0 design for uninterrupted real-time imaging, a 1.03-inch QHD 2560 × 2560 AMOLED display, and an IP68-rated housing with recoil resistance up to 6000J. Recoil-activated recording automatically captures video and photos around the shot to 256GB of onboard storage, and hot-swappable 18650 batteries deliver up to 14 hours of runtime. A quick-release scope mount and IR torch with 30mm bracket are included in the box.
Features
- Dual-channel imaging: Switch instantly between 640 × 512 thermal and 1920 × 1080 digital night vision, or combine both with picture-in-picture.
- High-sensitivity thermal detector: 12μm sensor with NETD below 18mK and Hyper-Light enhancement for clear infrared imaging in tough conditions.
- Long-range thermal optics: 50mm F1.0 objective lens delivers a thermal detection range of up to 2600m.
- In-lens laser rangefinder: Fast, accurate distance readings up to 1500m with an onboard ballistic calculator.
- Premium QHD display: 1.03-inch 2560 × 2560 AMOLED screen delivers exceptional clarity across both channels.
- Shutterless 3.0 design: Eliminates calibration clicking and image freezing for smooth, uninterrupted real-time viewing.
- Rugged construction: IP68-rated housing with recoil resistance up to 6000J handles heavy calibres and harsh conditions.
- Long operating time: Hot-swappable 18650 batteries support up to 14 hours of continuous use.
Specifications
- Thermal resolution: 640 × 512 @12μm (uncooled VOx detector)
- Digital resolution: 1920 × 1080 @2.9μm (CMOS)
- Thermal sensitivity: NETD less than 18mK
- Objective lens: Thermal 50mm F1.0; Digital 35mm F4.0
- Magnification: 3.7× to 29.6× on both channels, with 8× digital zoom
- Field of view: Thermal 8.8° × 7.0° (15 × 12m at 100m); Digital 6.4° × 5.1° (11 × 9m at 100m)
- Detection range: Thermal up to 2600m; Digital up to 500m
- Laser rangefinder: Up to 1500m, integrated in objective lens, with ballistic calculator
- Display: 1.03-inch AMOLED, 2560 × 2560 (QHD)
- Eye relief: 60mm; Diopter -5 to +5
- Storage: 256GB onboard, recoil-activated recording (15-second video + 5 photos per shot)
- Connectivity: Dual-band Wi-Fi (2.4G/5G), Bluetooth, USB-C
- Protection rating: IP68
- Recoil resistance: 6000J
- Battery: Hot-swappable 18650 (2 built-in + 1 external), up to 14 hours
- Tube diameter: Standard 30mm
- Scope mount: Quick-release mount included, tube torque setting below 2.5 N·m / 22.13 in-lbs

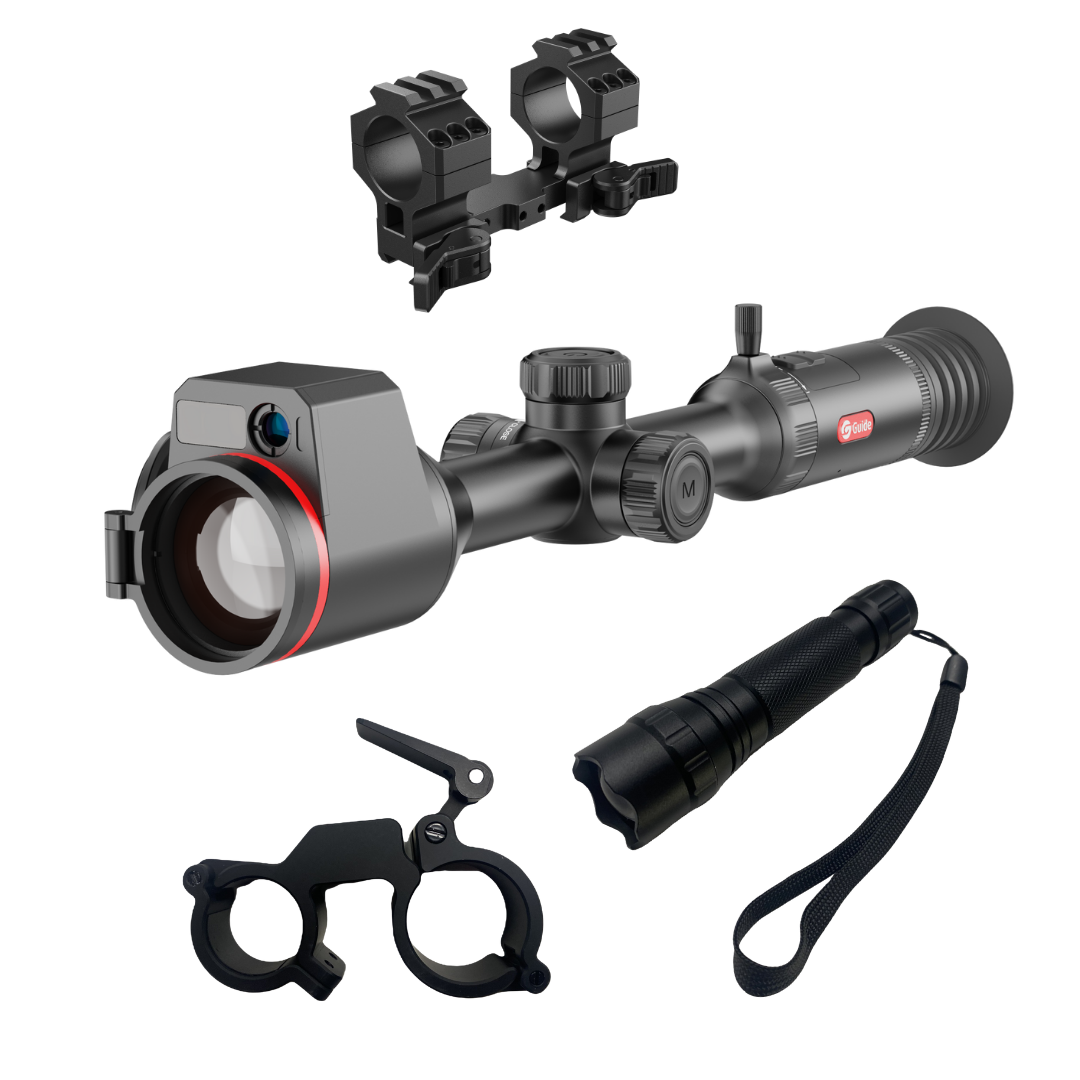

What's Included
- Guide TU650M 3.0 Thermal Scope
- Quick-release scope mount
- IR torch and 30mm bracket
- Lens cover
- Eye mask
- Carry bag
- Batteries and charger
- USB-C cable
- Quick start guide and warranty card
