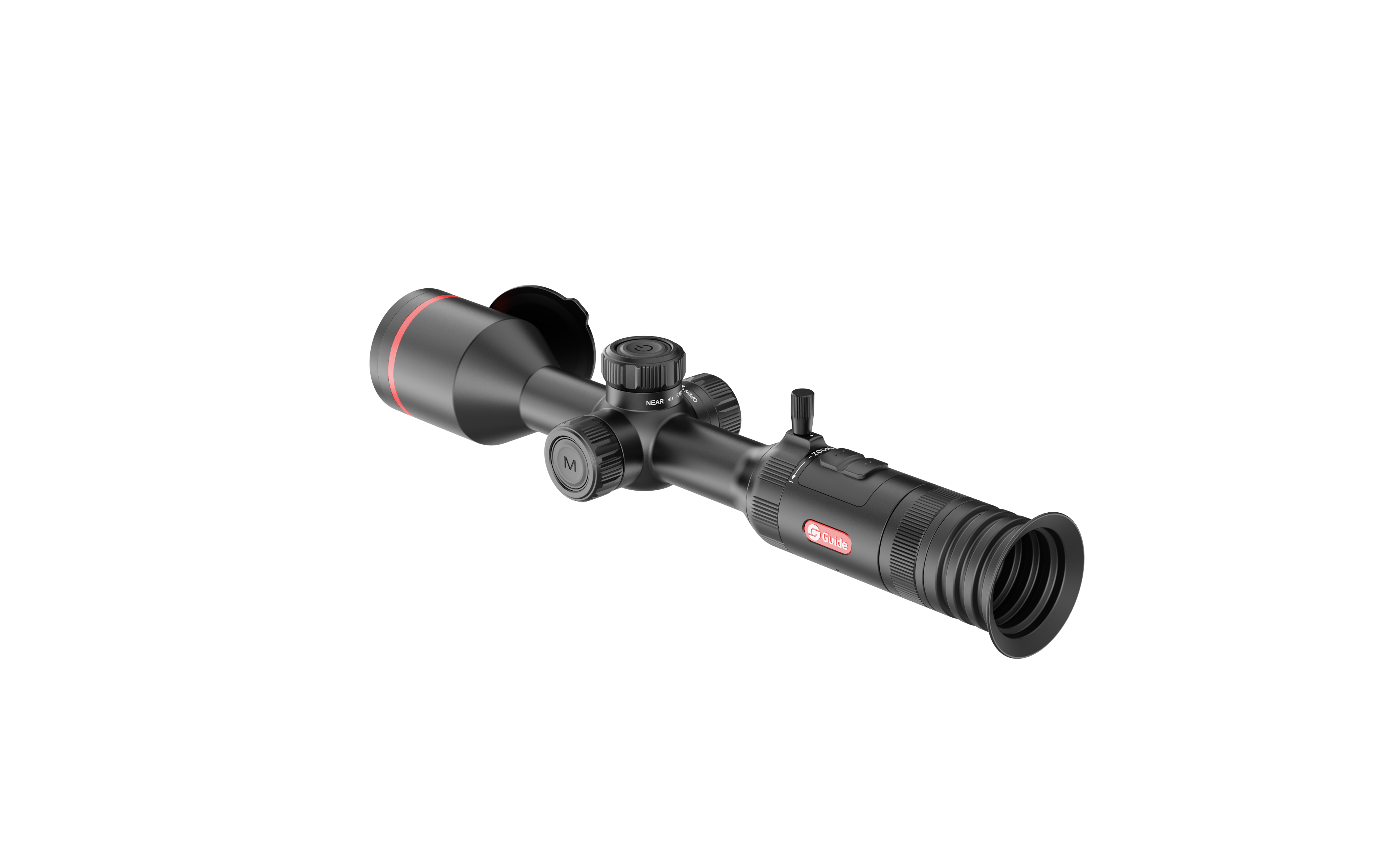

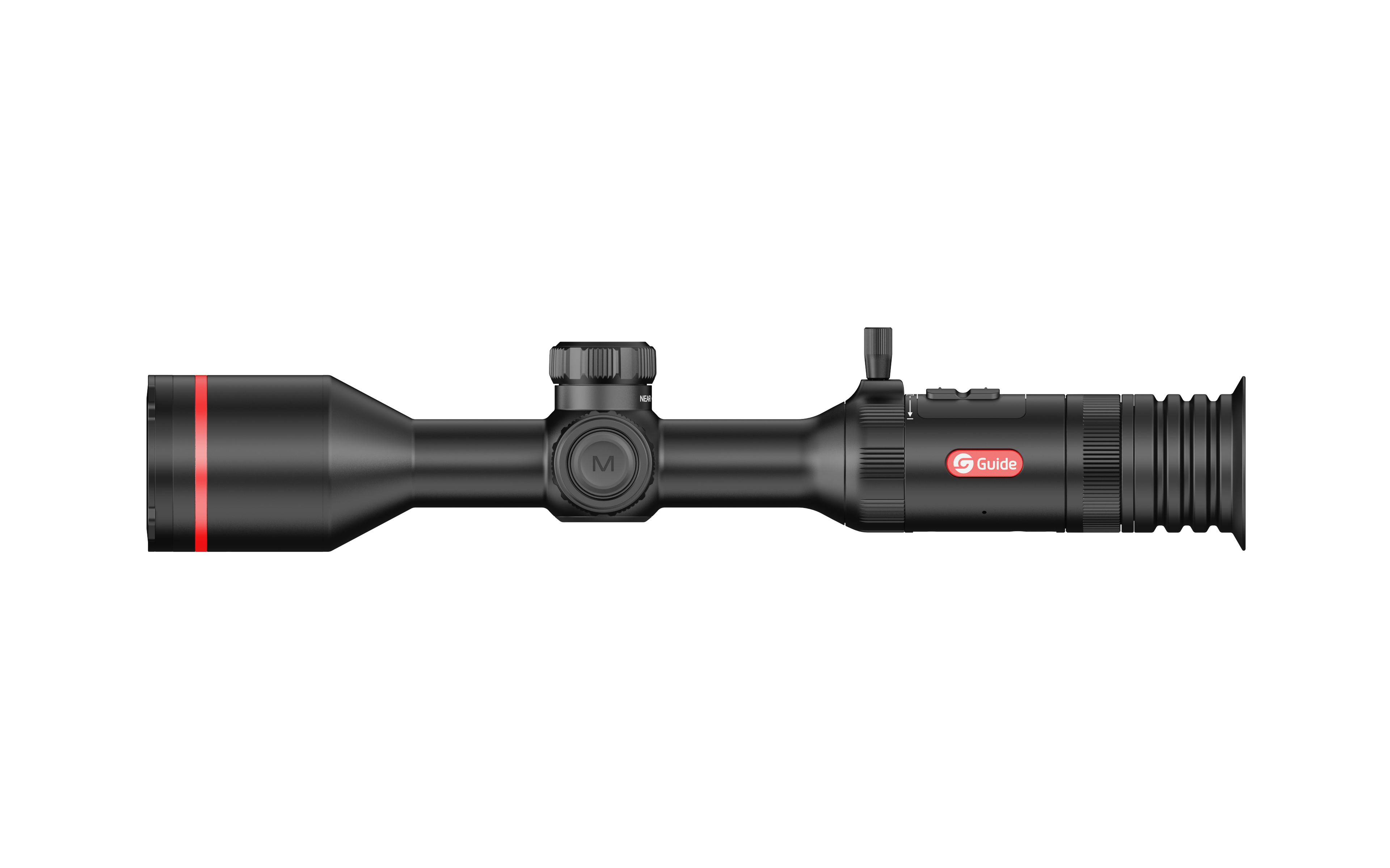

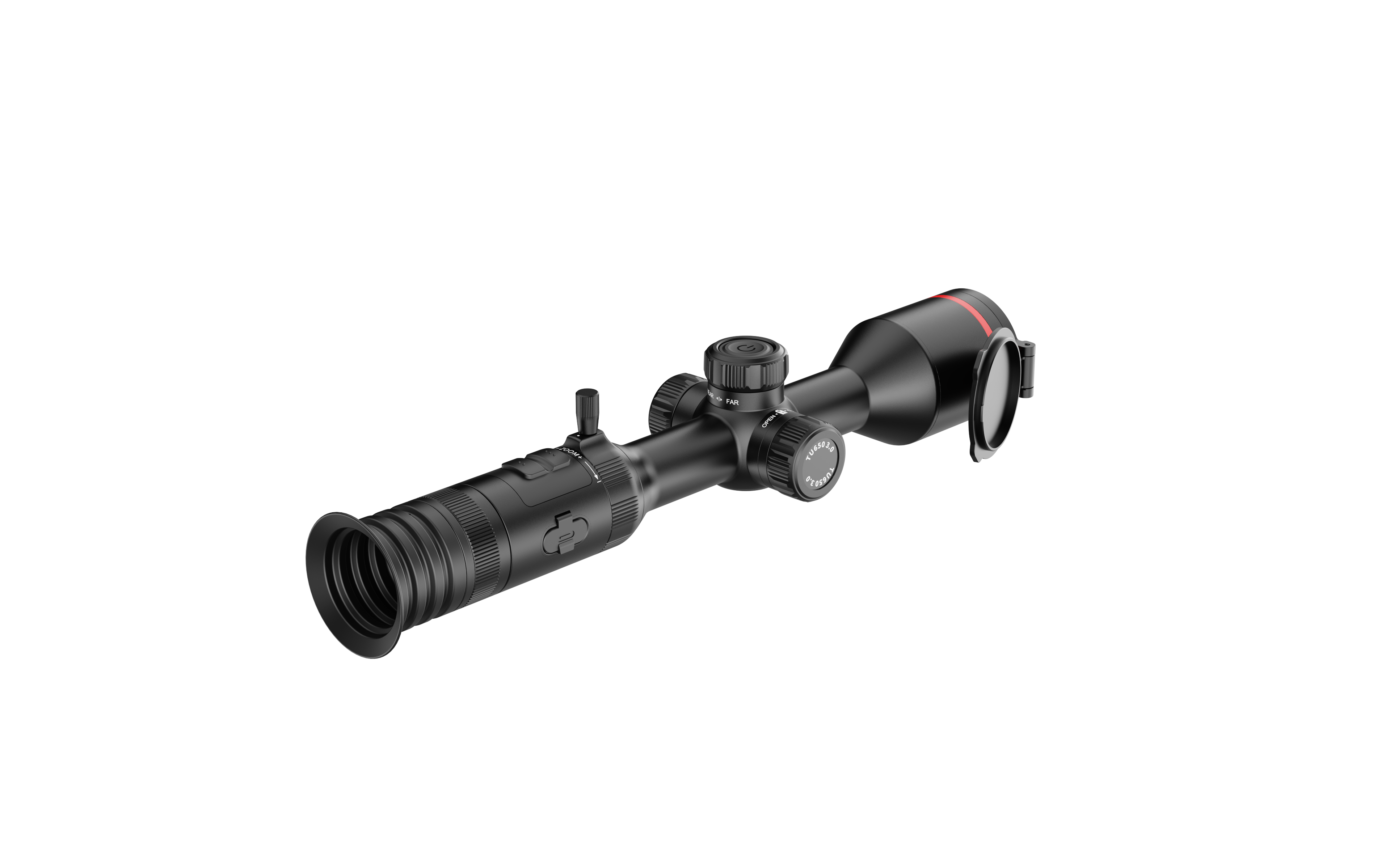

The Guide TU435S is built for long-range performance and precision, powered by the next-generation ApexVision infrared imaging system. Built for serious hunters and professionals who need reliable thermal performance in the field, the TU435S features a 400×300 @12μm thermal sensor with <15mK NETD sensitivity, giving clear images even in tough conditions.
With a 35mm lens and a detection range of up to 1800m, it's perfect for medium to long-range spotting. Designed for tough environments, the TU435S includes a shutterless design, IP68 waterproof rating, dual-band Wi-Fi, and easy-to-use controls — and comes with a Quick Release Scope Mount included.
Features
- Lightweight Design: Over 200g lighter than its predecessor while maintaining the same configuration, with a slim, metallic housing for improved handling.
- Seamless Control: An ergonomic control layout, from focus wheel to zoom lever and button, refined through extensive field testing.
Hyper-Light Algorithm
Next-generation sensors paired with the Hyper-Light algorithm deliver enhanced clarity, reduced noise, and optimised contrast.
2560×2560 Display
A 1.03" AMOLED display with 60mm eye relief and AI-enhanced imaging for comfortable extended viewing.
Shutterless 3.0 Technology
Eliminates image freezing and audible clicks for smooth, real-time viewing. A shutter module is retained for optimal image quality at startup and in extreme temperatures.
Specifications
- Sensor Resolution: 400×300
- Pixel Interval: 12μm
- NETD: 15mK
- Lens (Focal Length): 35mm
- Detection Range: 1800m
- Magnification: 4.4x–17.6x
- Display: 0.49'' AMOLED 1920×1080
- Laser Rangefinder: N/A (non-LRF model)
- Frame Rate: 50Hz
- Field of View (@100m): 7.4°×4.4° / 13×8m
- Battery Type: 18650×2 built-in + 18650×1 external
- Battery Operating Time: 8 hours
- Power Supply: USB-C
- Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
- Diopter: -5D to +5D
- Working Temperature: -20°C to 50°C
- Protection Level: IP68
- Dimensions: 374×89×76mm
- Weight: 738g
What's Included
- Guide TU435S Thermal Scope
- Quick Release Scope Mount
- 18650 rechargeable batteries
- USB-C charging cable
- Carry case
- User manual
