The Guide TU435P 3.0 Thermal Scope sits at the top of Guide's TU Pro 3.0 Series, pairing a highly sensitive 400 × 300 @12μm thermal detector (NETD below 18mK) with a 35mm F1.0 objective lens for sharp, high-contrast thermal imaging and a detection range of up to 1800m. Its laser rangefinder is integrated directly into the objective lens, minimising parallax error and delivering fast, accurate distance readings out to 1000m for confident shot placement at extended ranges.
Built for hard field use, the TU435P 3.0 features Guide's Shutterless 3.0 design for uninterrupted real-time imaging with no calibration freeze, an IP68-rated housing with recoil resistance up to 6000J, and dual-band Wi-Fi for streaming and remote control. Hot-swappable 18650 batteries deliver up to 14 hours of runtime, and a quick-release scope mount is included in the box.
Features
- High-sensitivity thermal detector: 400 × 300 @12μm sensor with NETD below 18mK reveals fine heat-signature detail even in low-contrast or poor weather conditions.
- Long-range optics: 35mm F1.0 objective lens delivers a detection range of up to 1800m for medium to long-range work.
- In-lens laser rangefinder: Integrated into the objective lens to minimise parallax error, providing fast, accurate distance readings up to 1000m.
- Hyper-light image enhancement: Boosts image quality through improved clarity, reduced noise and optimised contrast for ultra-detailed thermal imagery.
- Shutterless 3.0 design: Eliminates calibration clicking and image freezing for smooth, uninterrupted real-time viewing.
- Rugged construction: IP68-rated housing with recoil resistance up to 6000J handles heavy calibres and harsh conditions.
- Long operating time: Two replaceable and rechargeable 18650 batteries support hot swapping for up to 14 hours of continuous use.
Specifications
- Resolution: 400 × 300 @12μm (uncooled VOx detector)
- Thermal sensitivity: NETD less than 18mK
- Objective lens: 35mm F1.0
- Detection range: Up to 1800m
- Laser rangefinder: Up to 1000m, integrated in objective lens
- Display: 0.49-inch AMOLED, 1920 × 1080
- Connectivity: Dual-band Wi-Fi (2.4G/5G), USB-C
- Protection rating: IP68
- Recoil resistance: 6000J
- Battery: 2 × replaceable 18650 (hot-swappable), up to 14 hours
- Scope mount: Quick-release mount included, tube torque setting below 2.5 N·m / 22.13 in-lbs
What's Included
- Guide TU435P 3.0 Thermal Scope

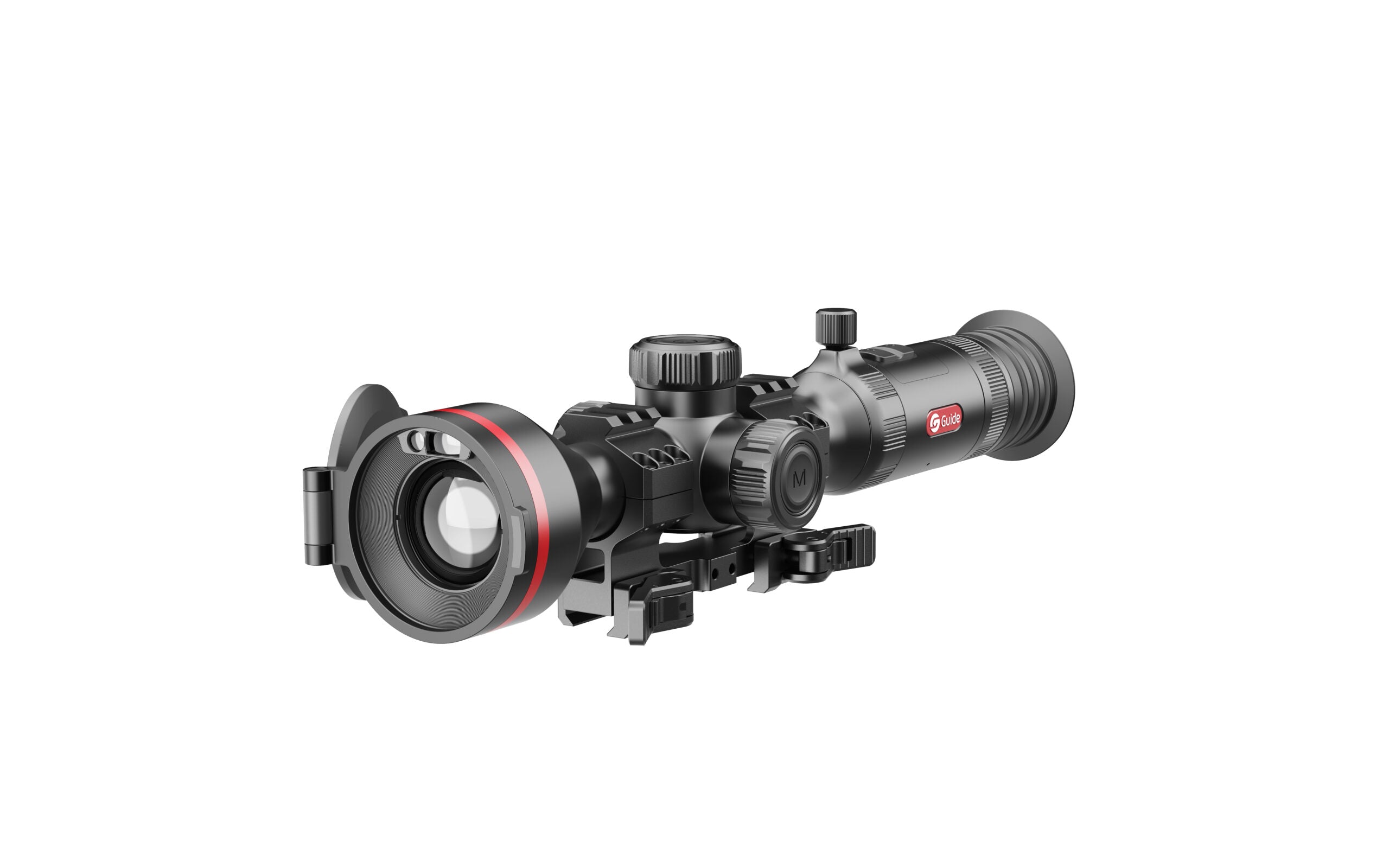

- Quick-release scope mount
- Lens cover
- Eye mask
- 2 × rechargeable 18650 batteries
- Battery charger
- 5V/2A power adapter
- USB-A to USB-C cable
- Carry bag
- Quick start guide and warranty card
