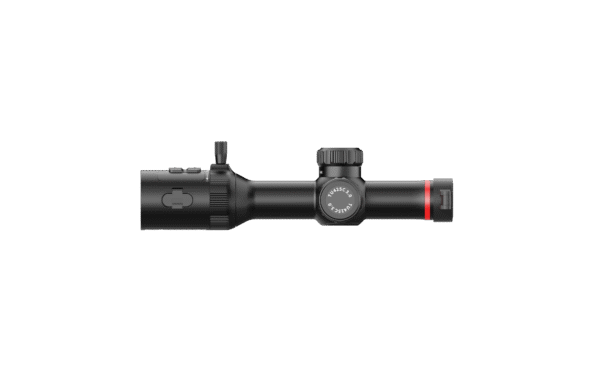

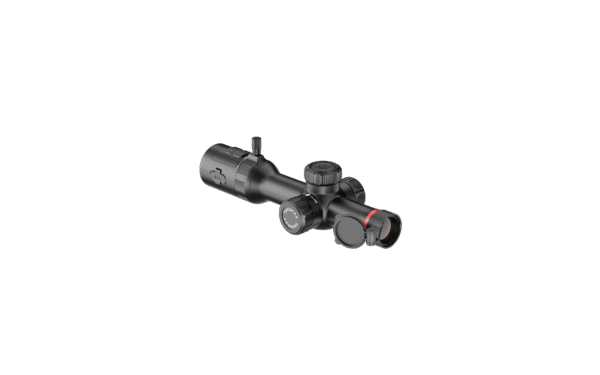

The Guide TU425C 3.0 is the smallest and lightest thermal scope in the Guide TU Gen 3 lineup, weighing in at just 438g. Designed in a Low Power Variable Optic (LPVO) style, it's the world's first thermal scope with a touchscreen — a 1.43-inch AMOLED display eliminates the traditional eyepiece for infinite eye relief, so recoil is never a concern and viewing stays comfortable all day.
Equipped with AI-enhanced imaging, a shutterless design, ergonomic controls and IP68-rated protection, the TU425C is built to perform in the toughest conditions. Dual-band Wi-Fi connectivity adds convenience for streaming, sharing and remote control via mobile devices, and it ships with a quick-release scope mount (tube torque setting under 2.5N·m / 22.13 in-lbs) for fast, tool-free installation.
Features
- World's first touchscreen thermal scope: 1.43-inch AMOLED touchscreen (466 × 466) for intuitive tap control and infinite eye relief.
- Ultra-compact LPVO design: Just 438g — the smallest and lightest scope in the Guide TU Gen 3 lineup.
- 400 × 300 @12μm thermal sensor: NETD 20mK for clear imagery, with a 25mm F1.0 lens giving a 1300m detection range.
- Shutterless viewing system: No clicking sound or image freezing during calibration — never miss a moment.
- Rugged construction: IP68-rated, shock-resistant to 6000J, rated to .300 Win Mag recoil.
- Includes quick-release scope mount: Fast, tool-free installation and removal.
- Onboard recording: Photo and video with audio to 32GB internal storage, dual-band Wi-Fi and Bluetooth for streaming and sharing.
- Long battery life: Dual battery system (internal + external 18650) for up to 12 hours of use.
Specifications
- Resolution: 400 × 300 @12μm (uncooled VOx detector)
- Thermal sensitivity: NETD 20mK
- Objective lens: 25mm F1.0
- Magnification: 0.7× to 2.8×
- Field of view: 8.2° × 8.2°
- Detection range: Up to 1300m
- Display: 1.43-inch AMOLED touchscreen, 466 × 466
- Storage: 32GB internal, photo/video recording with audio
- Connectivity: Dual-band Wi-Fi (2.4G/5G), Bluetooth, USB-C
- Tube diameter: Standard 30mm
- Protection rating: IP68
- Recoil rating: .300 Win Mag, 6000J/1200G shock resistance
- Battery: Internal 18500 + external 18650, up to 12 hours
- Operating temperature: -20°C to 50°C
- Weight: 438g
- Dimensions: 245 × 89 × 70mm
What's Included
- Guide TU425C 3.0 Thermal Scope
- Quick-release scope mount
- Lens cover
- Carry bag
- 2 × 18650 batteries
- Battery charger
