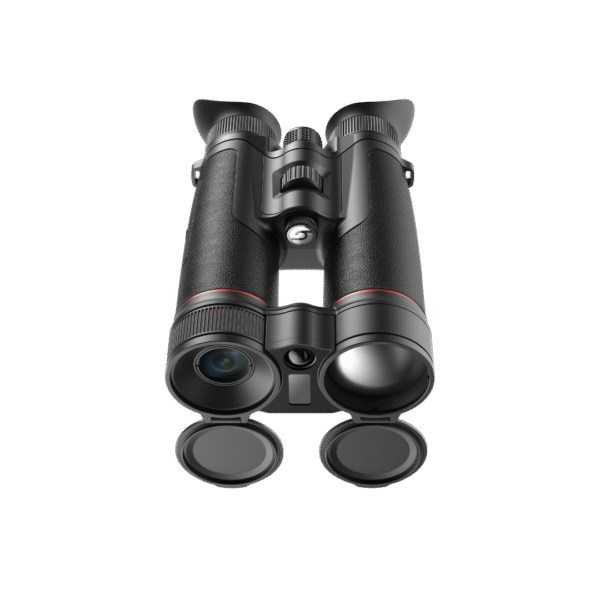

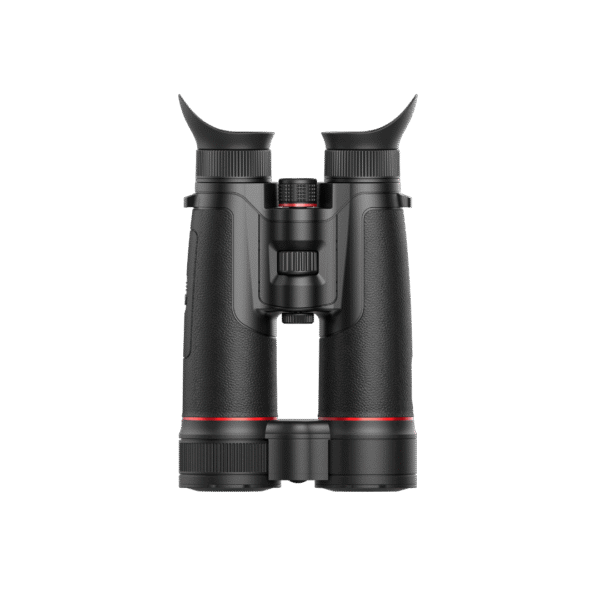

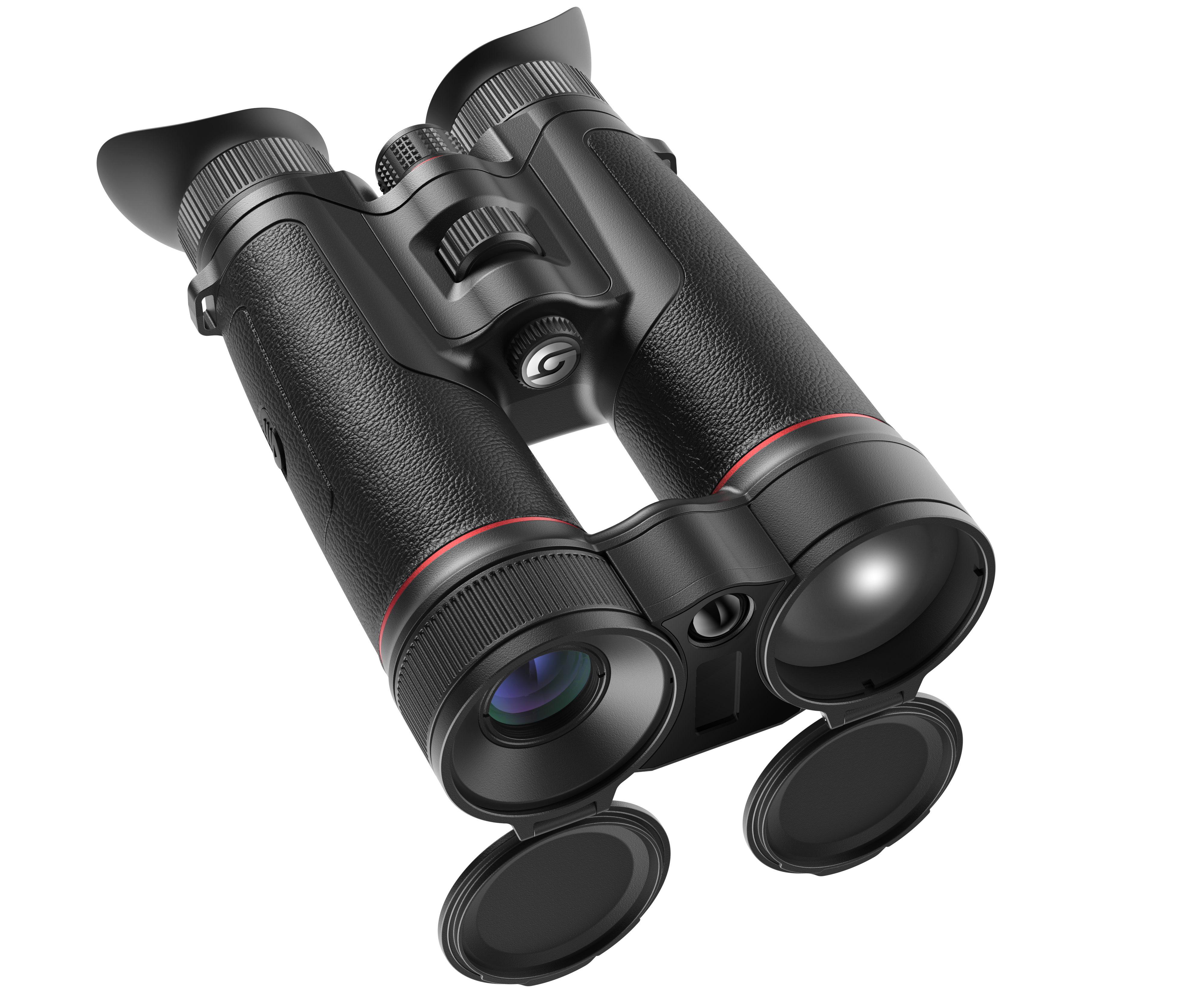

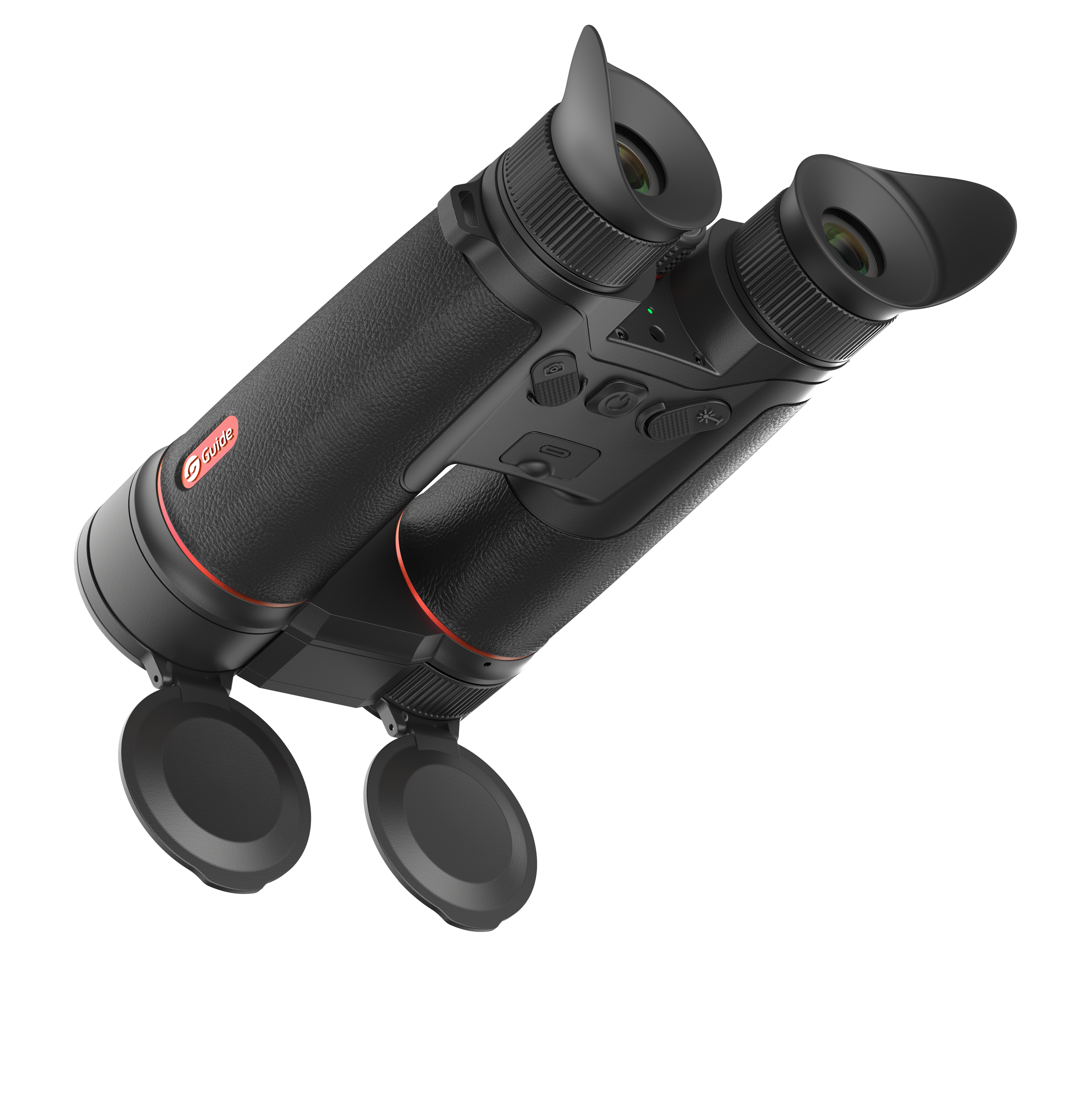

Guide TN650M 2.0 Multispectral Thermal Binoculars

The TN Muo 2.0 Series brings together the best of both worlds, combining high-sensitivity thermal imaging with ultra-HD night vision in one compact, rugged binocular. The TN650M 2.0 uses a powerful 640×512 thermal detector paired with a 3840×2160 low-light CMOS sensor, letting you switch between or fuse both views for unmatched situational awareness. With a 12μm thermal detector and ≤18mK NETD sensitivity, enhanced by the Hyper-Light image algorithm, you'll get crisp, detailed visuals even in the most challenging low-light or adverse weather conditions.

More than just optics, the TN650M 2.0 integrates a rangefinder, GPS, and digital compass, giving you the tools you need for quick, informed decision-making in the field.

Features

Thermal & Digital, All-Weather Performance

A dual-sensor system combining a 640×512 high-sensitivity thermal detector with a 4K low-light CMOS sensor delivers consistent, reliable image performance across all lighting and weather conditions.

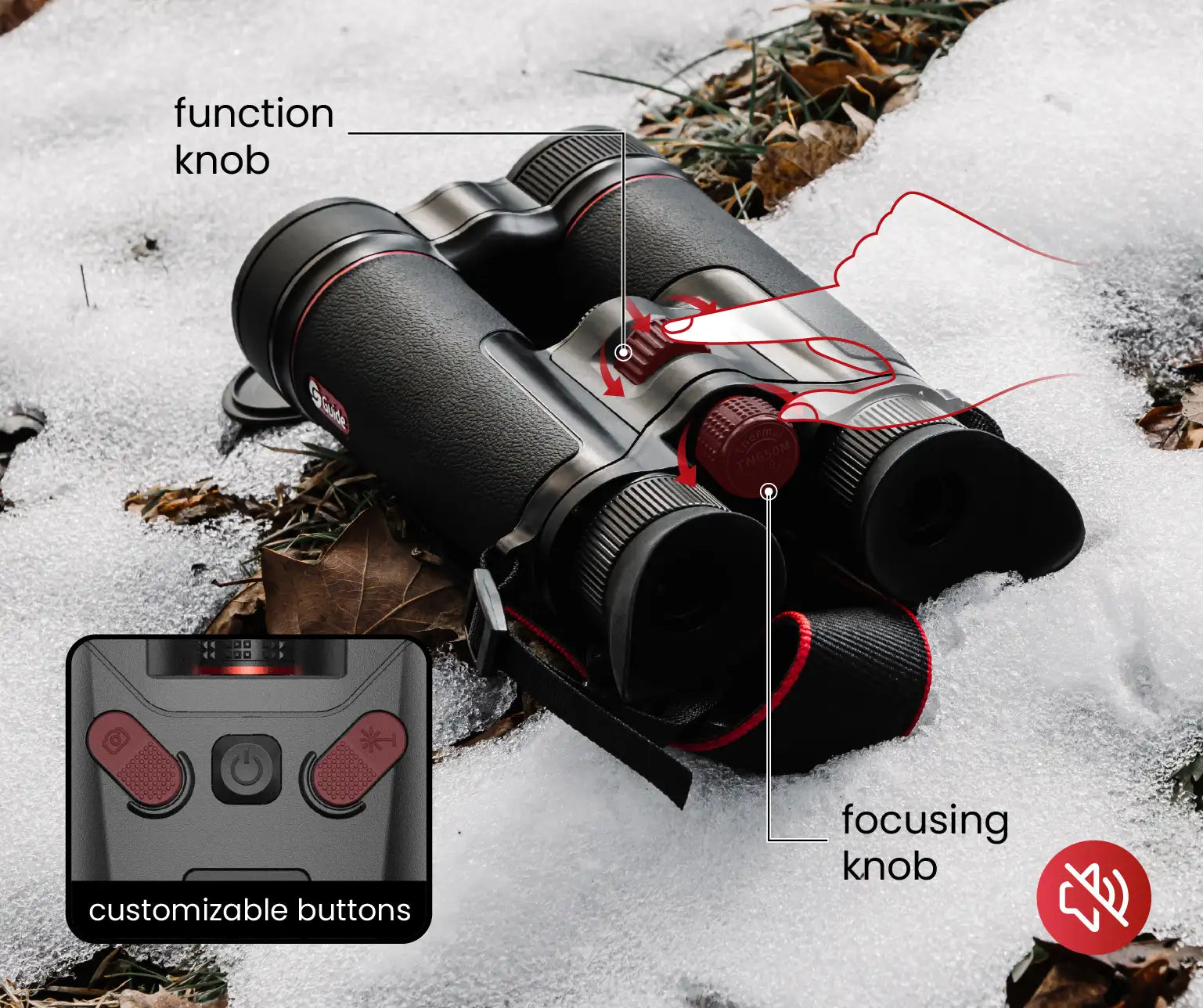

One-Handed Control, Intuitive Operation

A streamlined, quiet control layout with multi-function rotary knobs and customisable buttons makes operation simple and efficient — scroll to select and click to confirm using one hand.

Slim, Lightweight Design

A refined, slim housing inspired by classic binocular design offers a more comfortable grip and improved handling in the field. Now 20% lighter than the previous generation, it delivers better balance and portability for extended use without fatigue.

Laser Rangefinder for Precision Targeting

An integrated 1500m laser rangefinder, along with GPS, a digital compass and gyroscope, delivers accurate distance measurement and reliable target positioning in the field.

Premium Visuals, Optimised Clarity

A high-sensitivity detector paired with a 1920×1080 AMOLED display delivers sharp, detailed imagery. The proprietary Hyper-Light algorithm produces clearer contrast and improved detail in challenging conditions.

Specifications

• Thermal Sensor Resolution: 640×512
• Digital Sensor Resolution: 3840×2160 (4K)
• Pixel Interval: Thermal 12μm; Digital 2μm
• NETD: Less than 18mK
• Lens (Focal Length): Thermal 50mm F1.0; Digital 33mm F1.4
• Detection Range: Thermal 2600m; Digital 950m
• Magnification: Thermal 3.9x–31.2x; Digital 2.6x–20.8x
• Display: 0.49'' AMOLED 1920×1080
• Laser Rangefinder: 1500m, with GPS and digital compass
• Frame Rate: 50Hz
• Field of View (@100m): Thermal 8.2°×5.0°; Digital 12.5°×7.5°
• Battery Type: Customised built-in battery + 1× external 18650
• Battery Operating Time: 5 hours
• Power Supply: 5V DC 2A via USB-C
• Palettes: IR — White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible — Day, Night, Low-light
• Diopter: -6D to +6D
• Working Temperature: -20°C to 50°C
• Protection Level: IP67
• Dimensions: 226×133×64mm
• Weight: 865g

What's Included

• Guide TN650M 2.0 Multispectral Thermal Binoculars
• Eye mask
• Neck strap
• Carry bag
• 18650 battery
• Battery charger
• USB-C cable
• Quick start guide and warranty card

Download Specification Sheet
