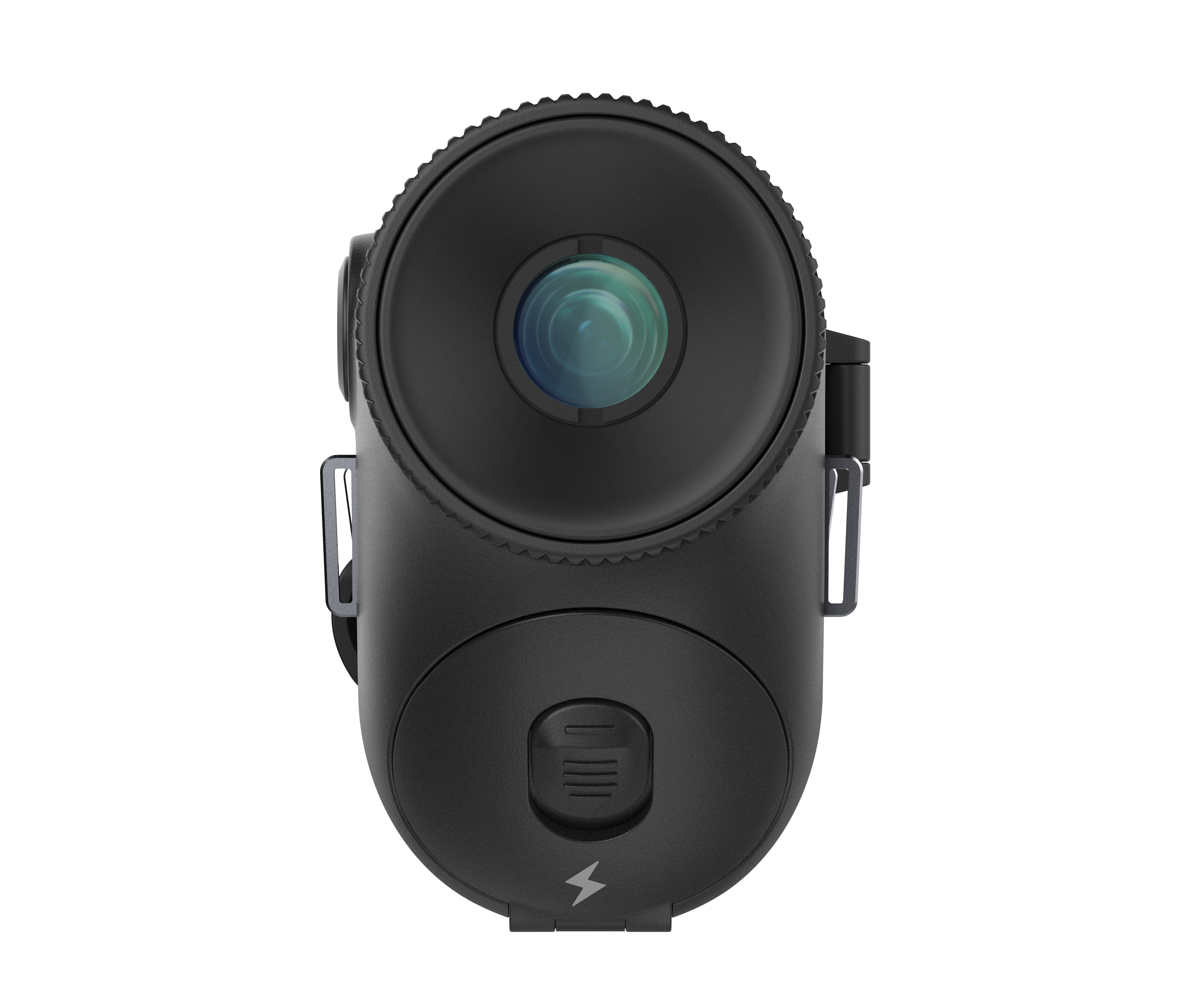

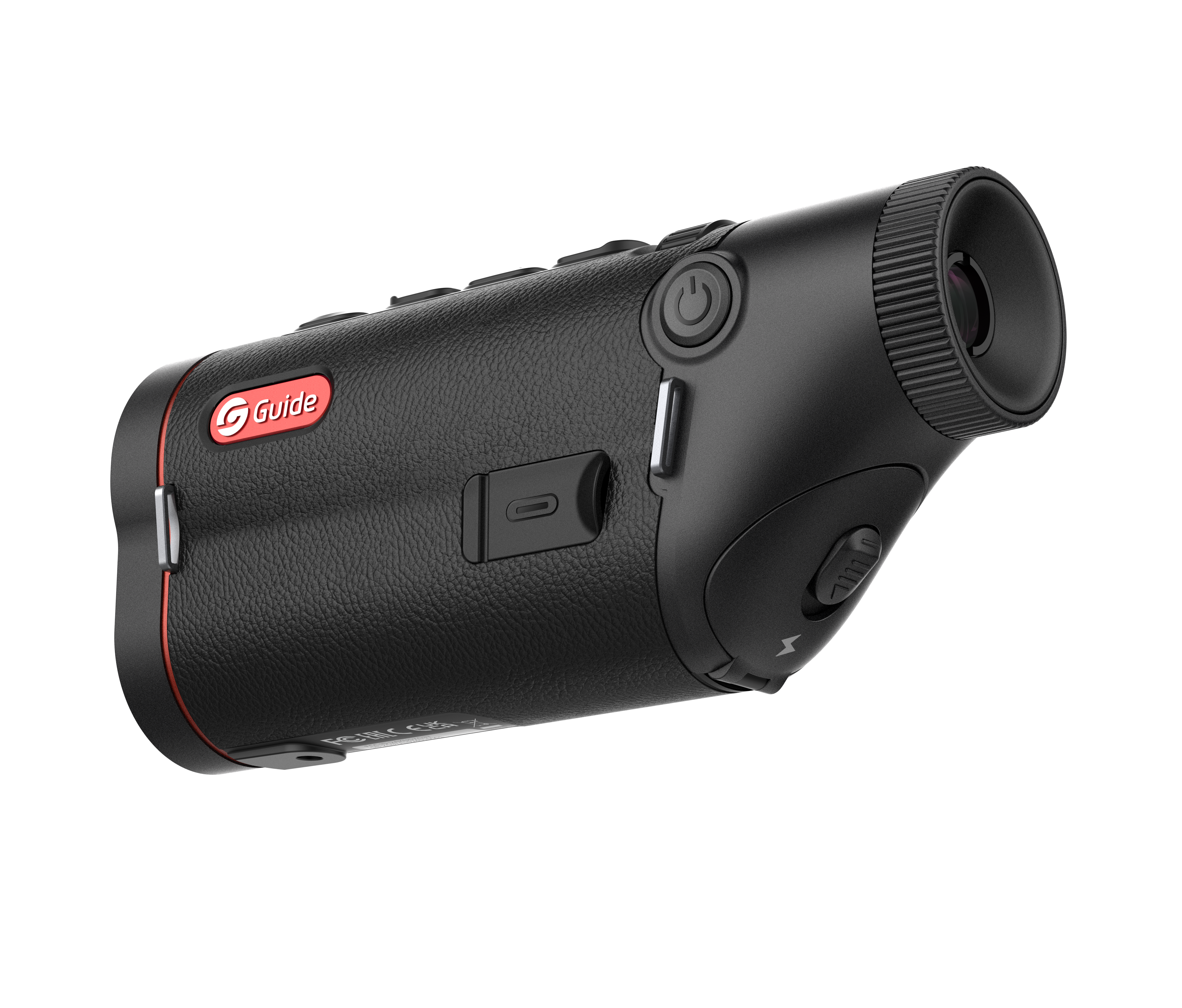

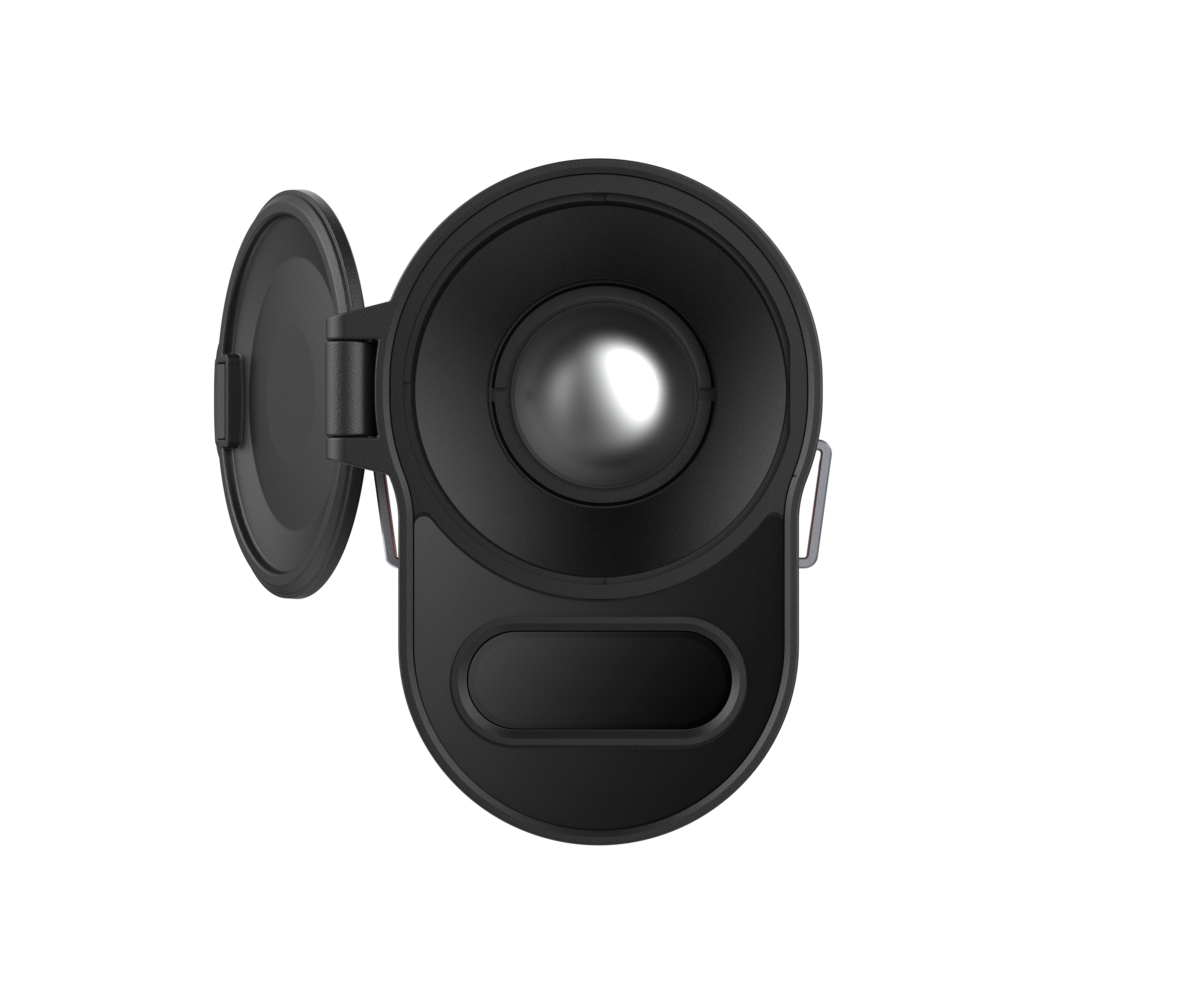

Guide TD433L 3.0 Thermal Monocular

The TD Gen3 LRF Series handheld thermal imaging monocular is engineered for precision and performance, featuring a fully integrated laser rangefinder (LRF) within a compact and lightweight housing. Its central focusing roller enables smooth, one-handed operation, while the ambidextrous, symmetrical design ensures optimal handling comfort for both left- and right-handed users.

Equipped with a high-capacity rechargeable battery, the TD Gen3 LRF delivers up to 12 hours of continuous operation, making it ideal for extended field use. The rugged IP67-rated construction provides superior protection against dust, water, and harsh environmental conditions. Built-in Wi-Fi connectivity allows seamless pairing with external devices for real-time image transmission, data sharing, and firmware updates.

Features

Powerful 12μm Detector for Sharper Images

The TD Gen3 LRF Series features a 12μm infrared detector, available in 640×512 and 400×300 resolutions, paired with a 35mm lens to deliver crisp, detailed images even in complete darkness.

Ambidextrous Design, Effortless One-Handed Operation

Designed for ambidextrous use, the symmetrical housing ensures equal comfort for left- and right-handed users, with an ergonomic control layout that enables smooth, one-handed operation.

Fine Focus Control, Fingertip Precision

The mini focusing roller allows for fast, precise adjustments with a simple one-finger scroll.

Large AMOLED Display for Upgraded Visuals

Building on the previous generation, the TD Gen3 LRF Series features an AMOLED display delivering sharper detail and a more comfortable viewing experience.

Built-in LRF For Precise Target Identification

Seamlessly integrated into the design, the built-in laser rangefinder enhances both portability and functionality, offering precise distance measurement up to 1000 metres.

Specifications

• Sensor Resolution: 400×300
• Pixel Interval: 12μm
• NETD: Less than 25mK
• Lens (Focal Length): 35mm, F1.0
• Detection Range: 1300m
• Magnification: 2.9x–11.6x
• Display: 0.39'' AMOLED 1920×1080
• Laser Rangefinder: 1000m
• Frame Rate: 50Hz
• Field of View (@100m): 11.0°×8.2°
• Battery Type: 18650 ×1
• Battery Operating Time: 12 hours
• Power Supply: 5V DC 2A via USB-C
• Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Diopter: -6D to +6D
• Working Temperature: -20°C to 50°C
• Protection Level: IP67
• Dimensions: 159×54×74mm
• Weight: 357g

What's Included

• Guide TD433L 3.0 Thermal Monocular
• Hand strap
• Eye mask
• Battery charger
• 18650 battery × 1
• 5V 2A power adapter
• USB-A to USB-C cable
• Quick start guide
• Warranty card

Download Specification Sheet
