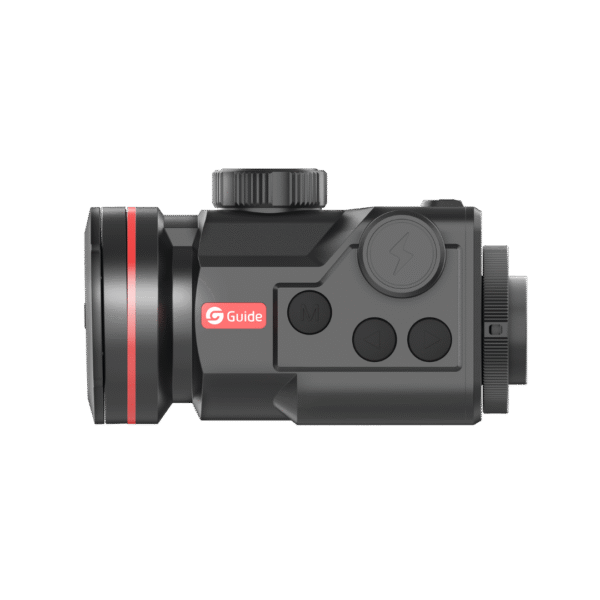

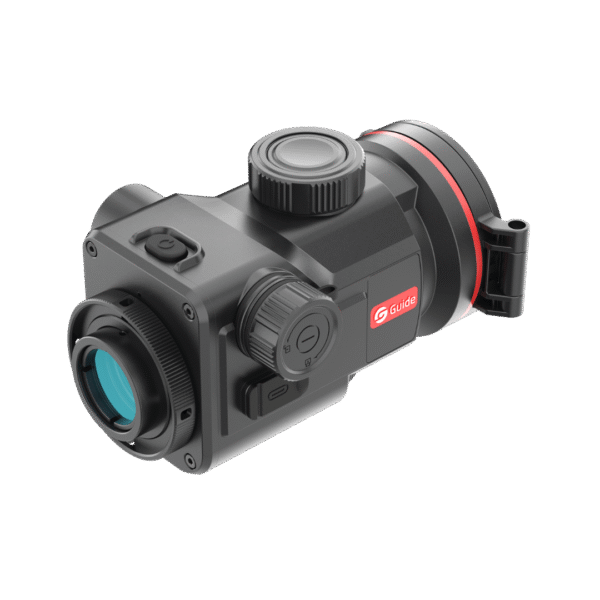

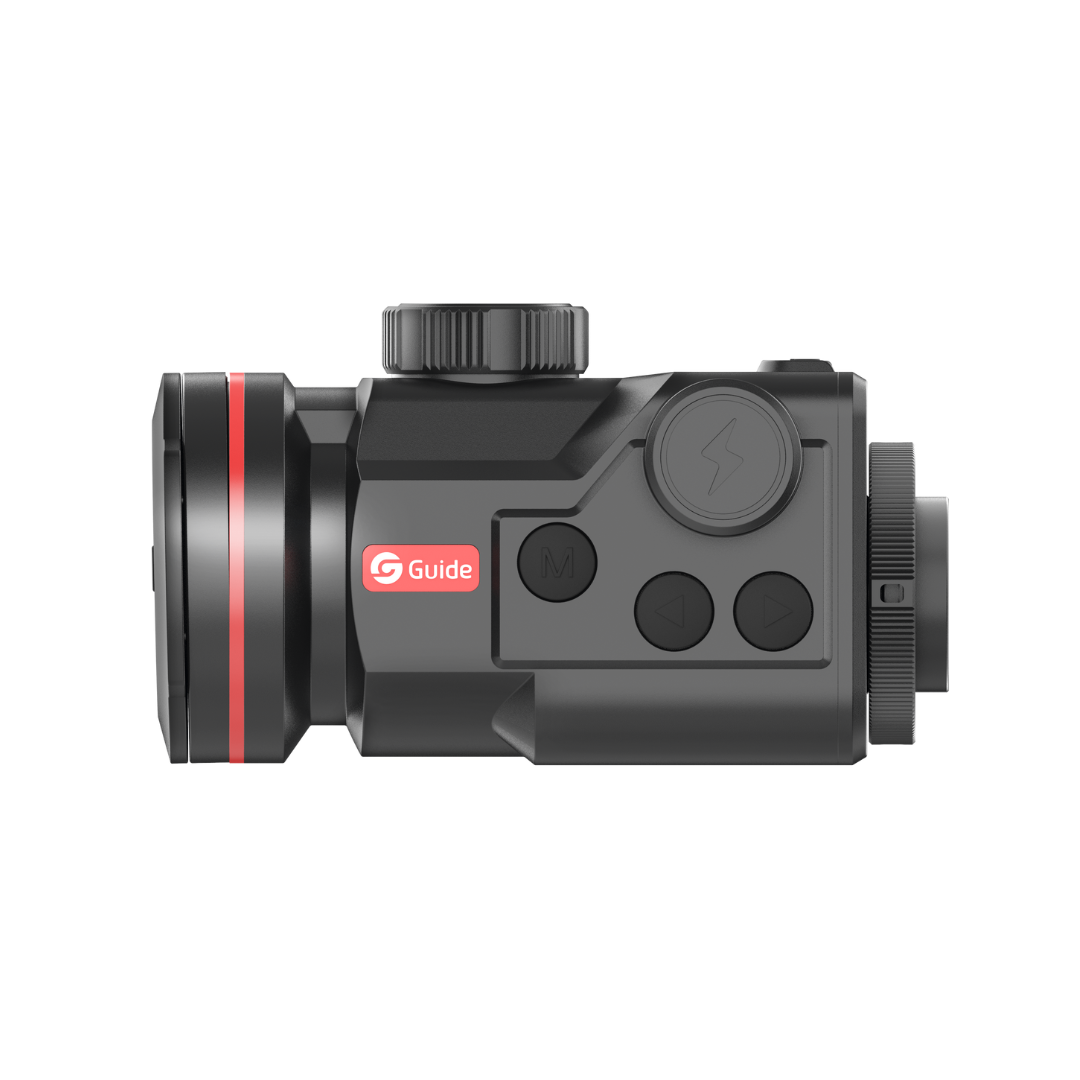

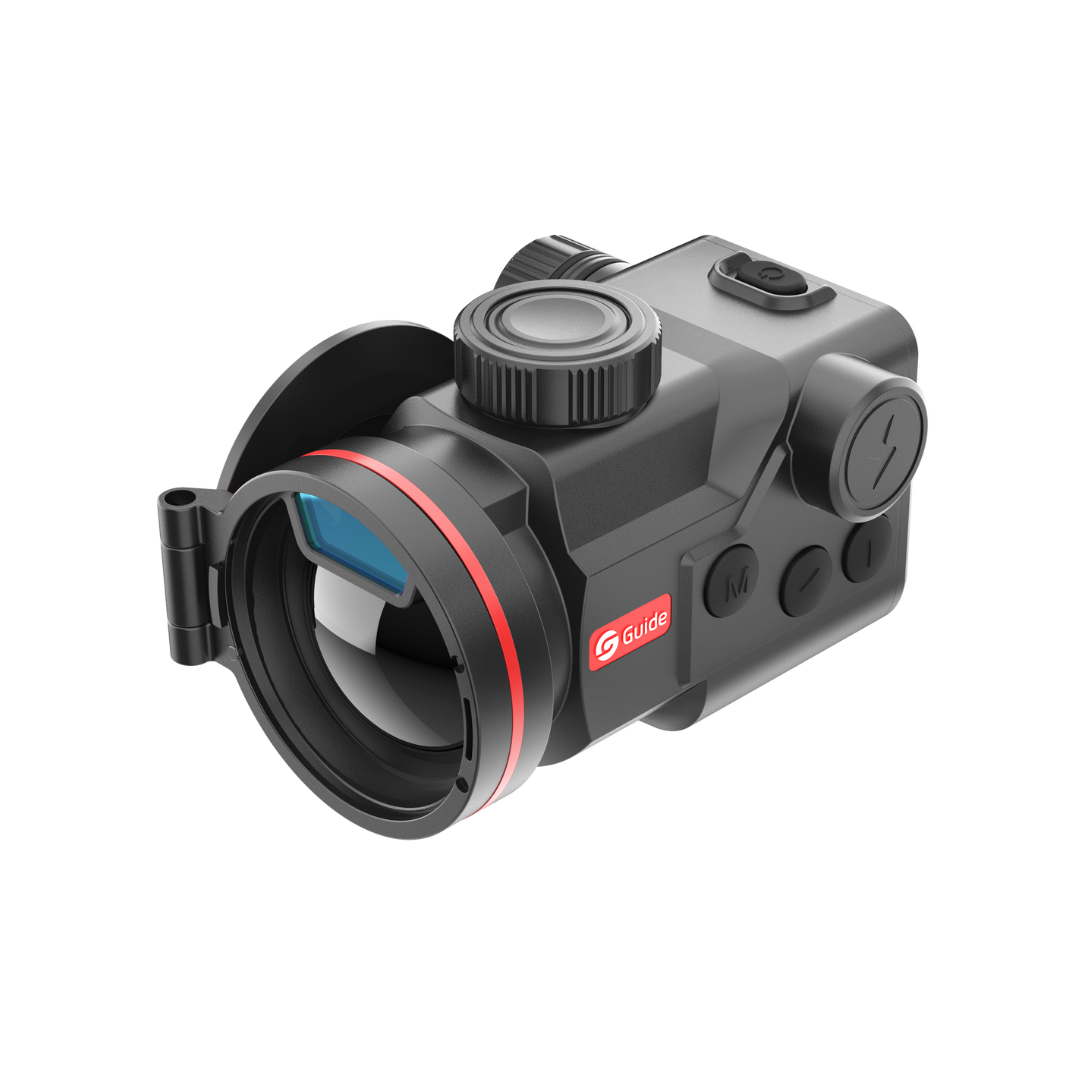

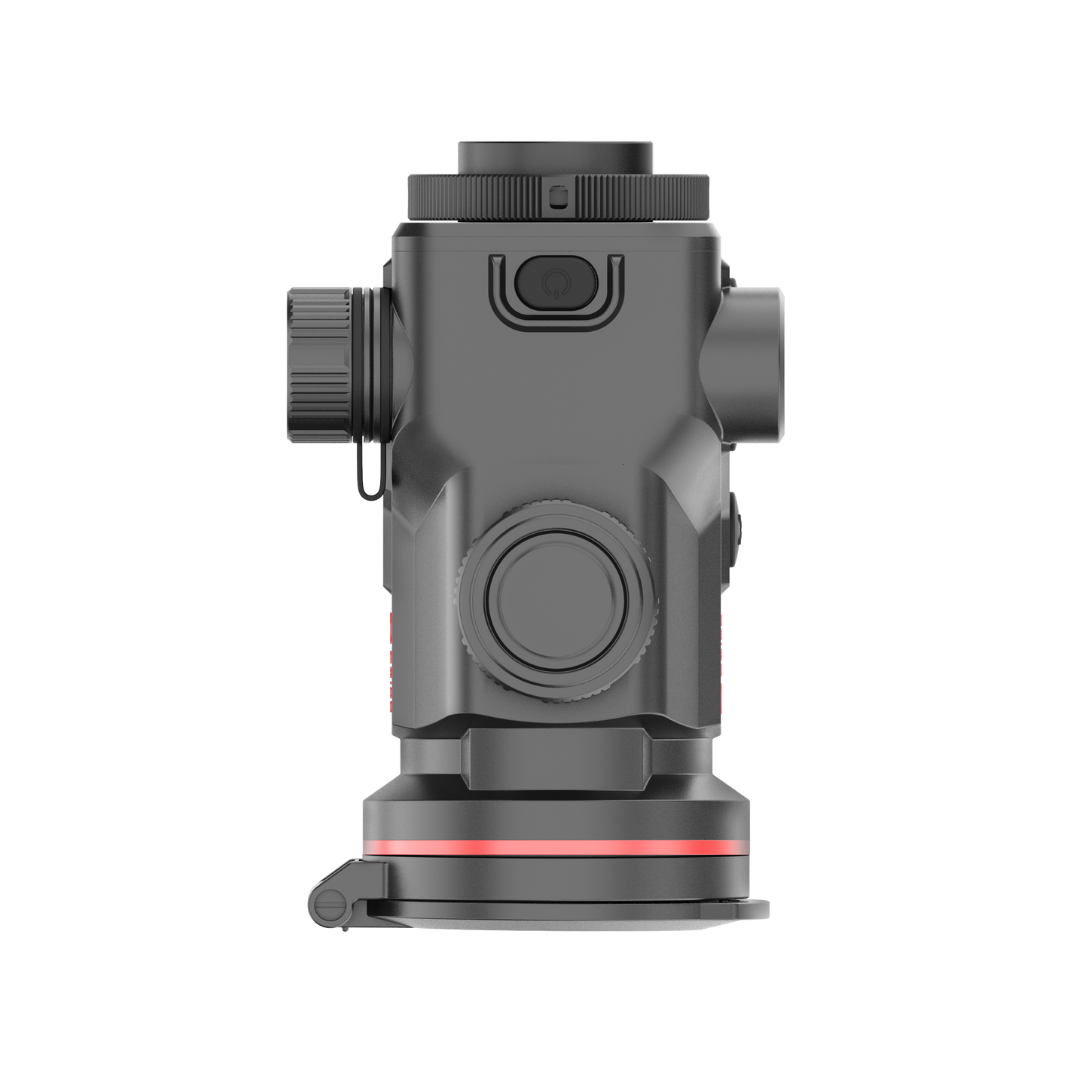

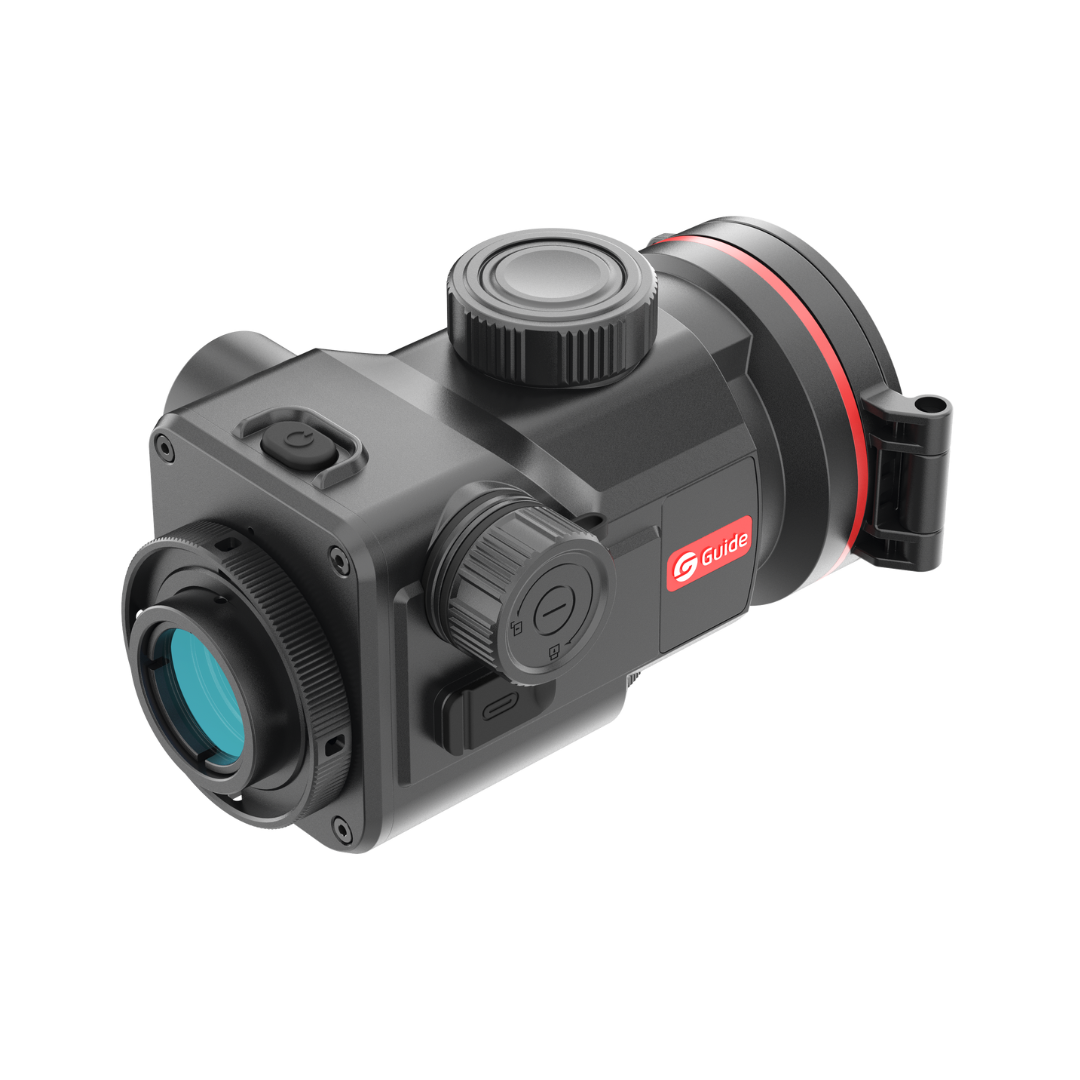

Guide TB650P 2.0 Thermal Clip-On

The Guide TB650P 2.0 Thermal Clip-On is a next-generation attachment built for hunters who demand precision and stealth. A 640 × 512 @12μm thermal detector (NETD 18mK) pairs with a fast 50mm F0.9 objective lens for a detection range of up to 2600m, while an in-lens laser rangefinder gives fast, accurate distance readings out to 1500m. Mounting in front of an existing daylight scope, it adds thermal capability without disturbing zero, reticle or eye relief.

Weighing under 490g, the TB650P 2.0 packs G-Zero shutterless technology, Guide's Hyper-Light image enhancement algorithm, and a standard replaceable 18650 battery into a compact magnesium alloy housing. Ultra-precise 1.22cm@100m click adjustments and compatibility with daylight optics up to 15x magnification deliver exceptional shot-to-shot precision.

Features

• High-sensitivity thermal detector: 640 × 512 sensor with 18mK NETD and Hyper-Light enhancement for clear infrared imaging in tough conditions.
• Fast, long-range optics: 50mm F0.9 objective lens delivers a detection range of up to 2600m.
• In-lens laser rangefinder: Integrated into the objective lens to minimise parallax error, providing fast, accurate distance readings up to 1500m.
• G-Zero shutterless design: True zero-shutter calibration for seamless, uninterrupted visuals.
• True clip-on compatibility: Mounts in front of existing daylight optics up to 15x magnification with no rezeroing required.
• Ultra-precise adjustment: 1.22cm@100m per-click accuracy for exceptional shot-to-shot precision.
• Lightweight and balanced: Under 490g in a compact magnesium alloy housing for comfortable handling when mounted.

Specifications

• Resolution: 640 × 512 @12μm (uncooled VOx detector)
• Thermal sensitivity: NETD 18mK
• Objective lens: 50mm F0.9
• Magnification: 1× optical
• Field of view: 8.8° × 6.6° (15 × 11m at 100m)
• Detection range: Up to 2600m
• Laser rangefinder: Up to 1500m, integrated in objective lens
• Display: 0.39-inch AMOLED, 1920 × 1080
• Eye relief: 20mm; Zoom 6.7x
• Storage: 64GB onboard, photo/video recording with audio
• Connectivity: Dual-band Wi-Fi (2.4G/5G), Bluetooth, USB-C
• Protection rating: IP68
• Shock resistance: 6000J
• Battery: Single replaceable 18650, up to 5 hours
• Weight: Under 490g

What's Included

• Guide TB650P 2.0 Thermal Clip-On
• 2 × 18650 batteries
• Battery charger
• USB-A to USB-C cable
• Quick start guide and warranty card

Download Specification Sheet
