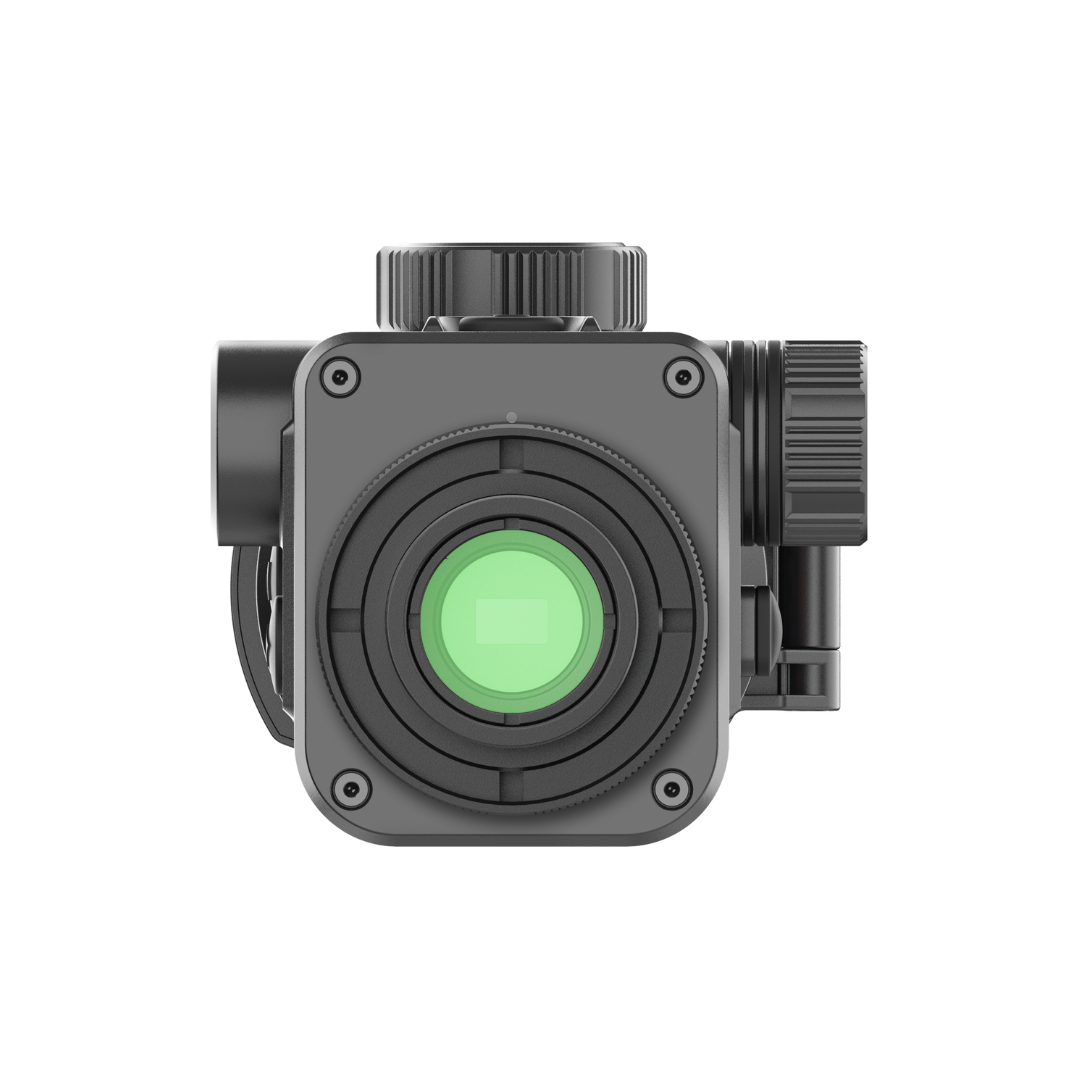

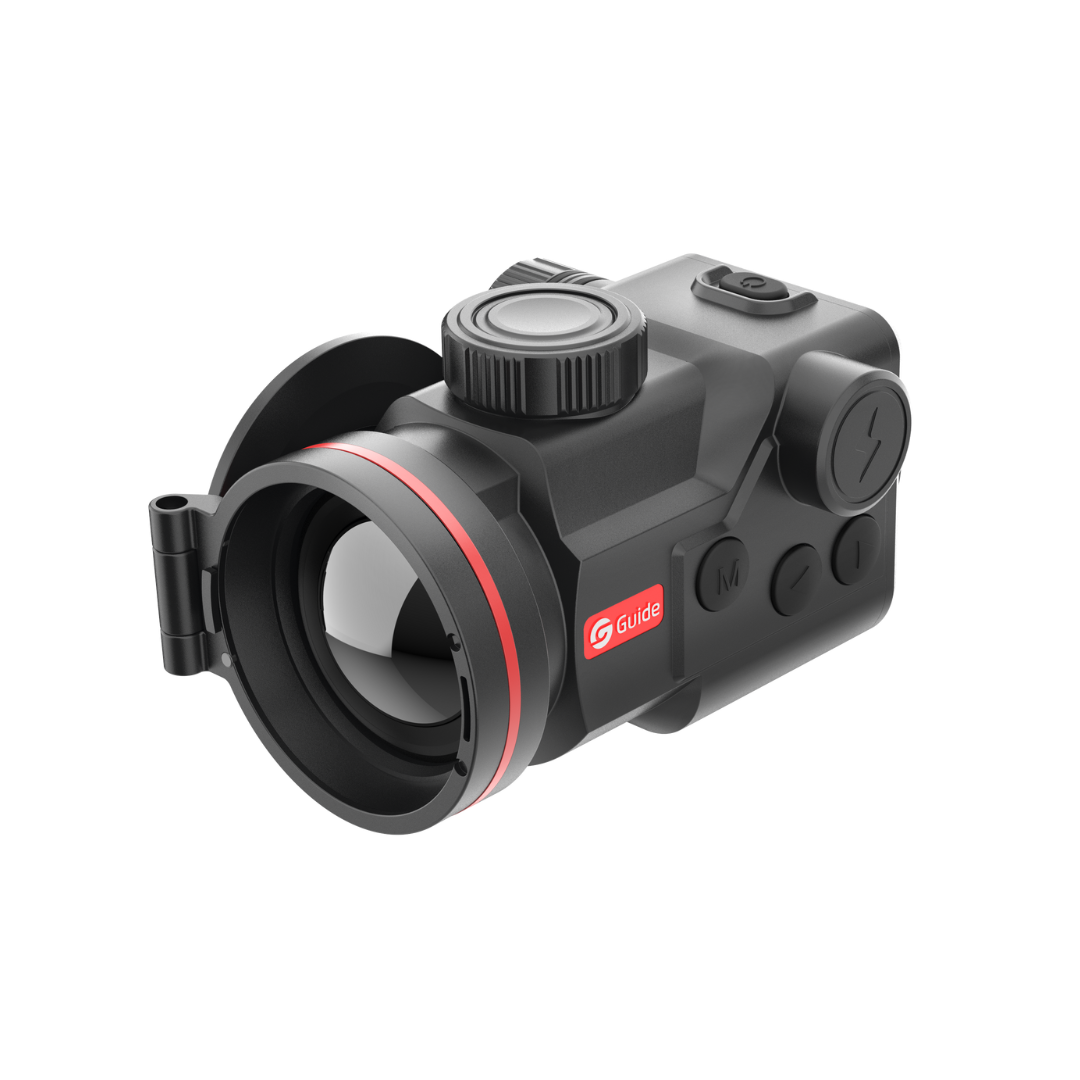

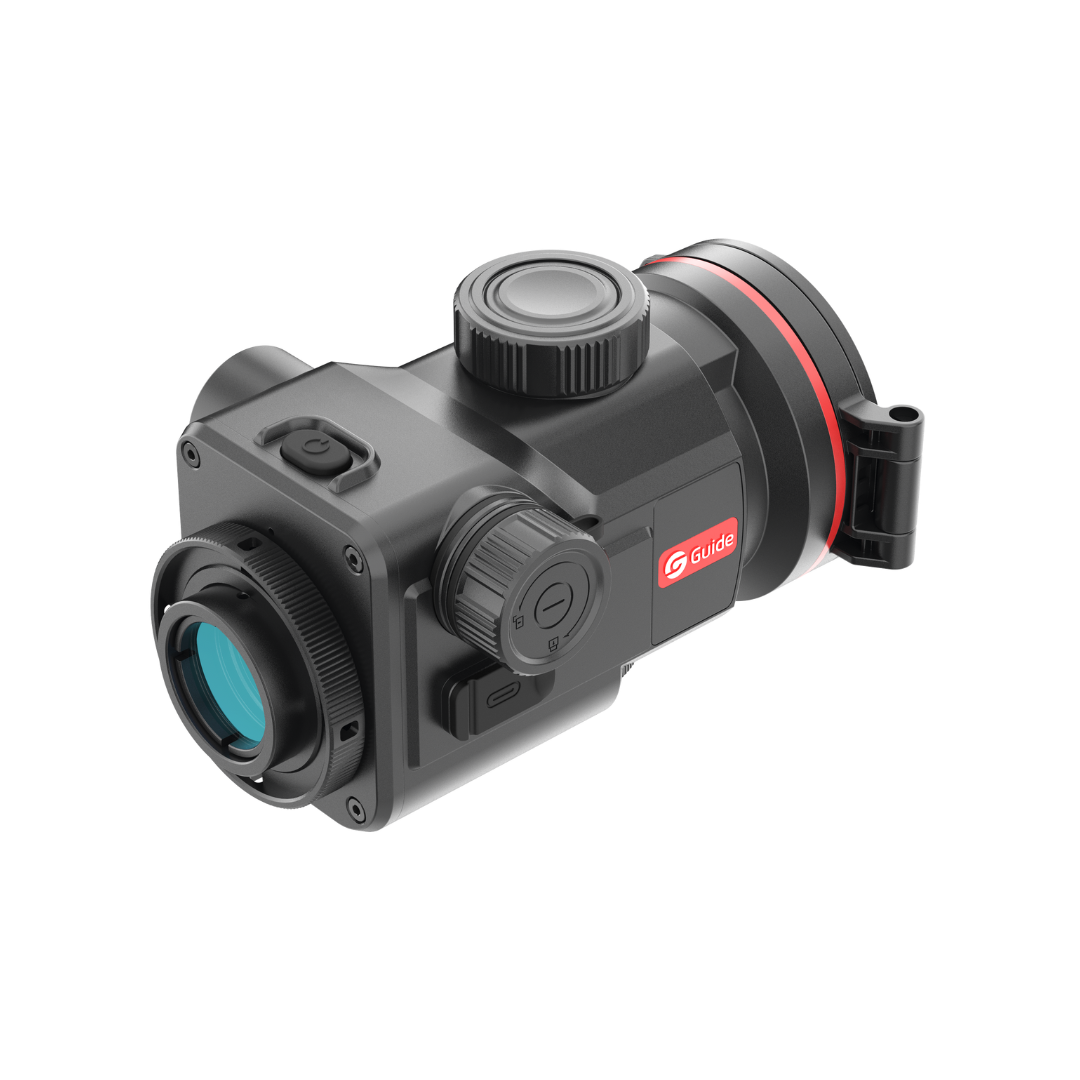

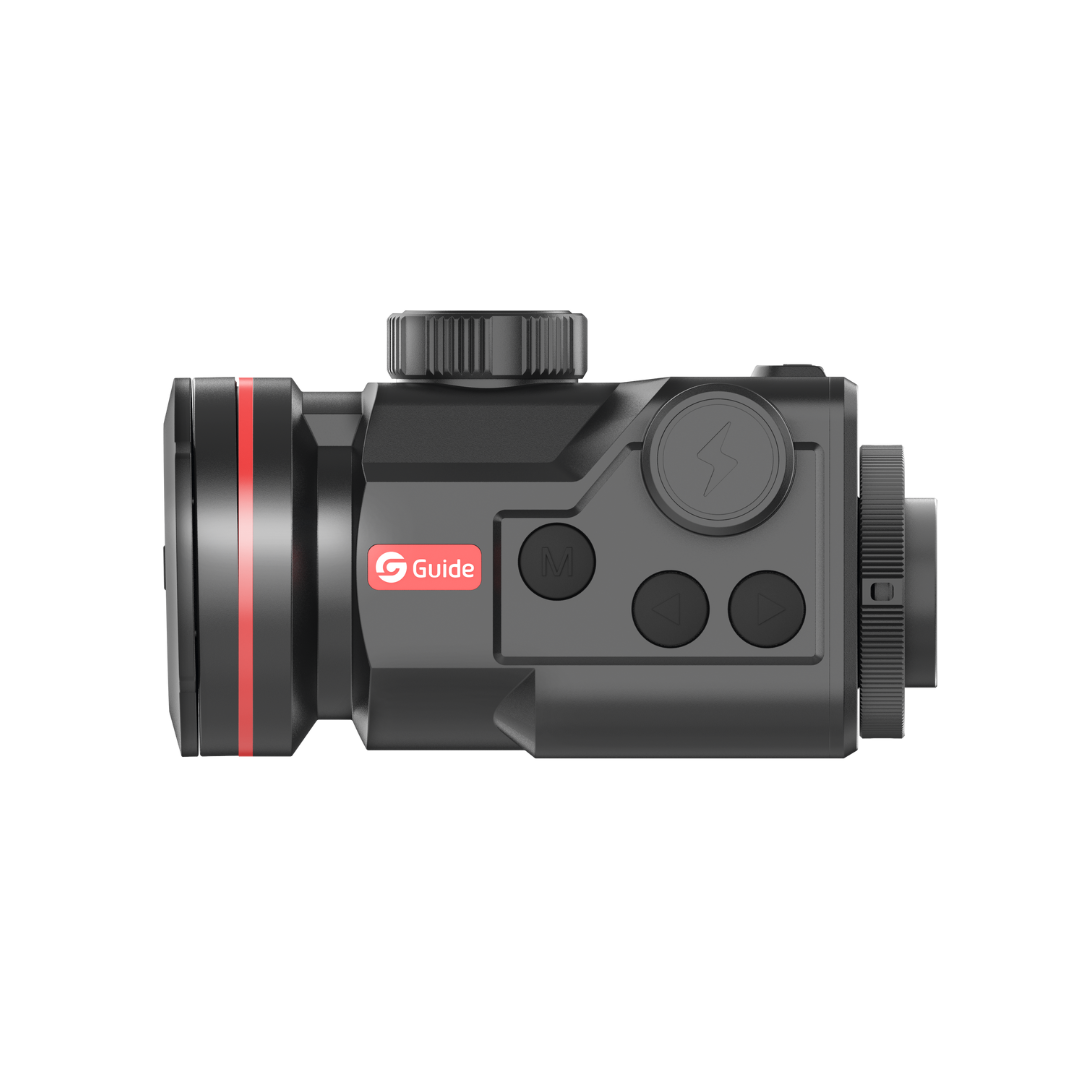

Guide TB650 2.0 Thermal Clip-On

The TB 2.0 Series is a next-generation thermal clip-on built for hunters who demand precision and stealth. Weighing under 490g, the Guide TB650 2.0's compact, lightweight design packs in advanced features including G-Zero shutterless technology, the powerful Hyper-Light image enhancement algorithm, and a standard replaceable 18650 battery.

Mounting in front of an existing daylight scope up to 15x magnification, it adds thermal capability without disturbing zero — delivering unmatched downrange accuracy, superior imaging performance, and effortless handling in the field. This is the non-LRF variant of the TB650 2.0 family (see the TB650P 2.0 for the built-in laser rangefinder version).

Features

True Shutterless Performance

With G-Zero Shutterless Design, startup is instant and uninterrupted, with no image freezing to distract you or cost you critical moments on target. Removing shutter calibration noise also ensures quieter, smoother performance in the field.

Hyper-Light Algorithm. Smarter Clarity.

Powered by an advanced Hyper-Light algorithm and a high-sensitivity thermal detector, it delivers exceptional clarity with finer detail, reduced noise, and enhanced contrast for long-range observation.

Ultra-Precise Zeroing for 15× Optics

With fine 1.22cm@100m adjustments, the TB 2.0 Series gives you precise control when zeroing. Optimised for use with daylight optics up to 15x, it maintains accuracy across every shot.

Lightweight and Well-Balanced

Weighing just 480–490g, the compact, palm-sized design keeps handling easy. Its balanced construction distributes weight evenly when mounted on a daylight scope, improving comfort and control in the field.

Specifications

• Sensor Resolution: 640×512
• Pixel Interval: 12μm
• NETD: 18mK
• Lens (Focal Length): 50mm, F1.0
• Detection Range: 2600m
• Magnification: 1x
• Display: 0.39'' AMOLED 1920×1080
• Laser Rangefinder: N/A
• Frame Rate: 50Hz
• Field of View (@100m): 8.8°×6.6°
• Battery Type: 18650 ×2
• Battery Operating Time: 5 hours
• Power Supply: 5V DC 2A via USB-C
• Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Working Temperature: -20°C to 50°C
• Protection Level: IP68
• Dimensions: 144×86×79mm
• Weight: 480g

What's Included

• Guide TB650 2.0 Thermal Clip-On
• 2 × 18650 batteries
• Battery charger
• USB-A to USB-C cable
• Quick start guide and warranty card

Download Specification Sheet
