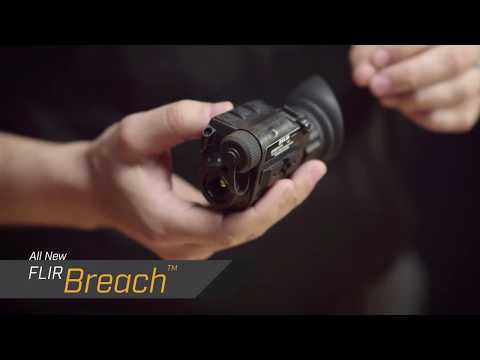

FLIR Breach PTQ136 Thermal Imaging Monocular (60Hz)
Tax excluded. Shipping calculated at checkout
Built for the rigors of law enforcement, the FLIR Breach PTQ136 spots the heat of suspects and objects in total darkness. Featuring the new FLIR Boson core and a compact design, the FLIR Breach offers unmatched tactical awareness. Weighing only 7.4 ounces (210 grams), the FLIR Breach can be concealed in a pocket or mounted to a helmet with its mini-rail feature, while adding minimal weight to officers’ heavy gear. Additional features include onboard recording and seven palettes for fast detection of suspects or evidence, day or night.
Specifications
| General | FLIR Breach PTQ136 |
|---|---|
| Detector Type | 320 x 256 VOx Microbolometer |
| Refresh Rate | 60 Hz |
| Start Up | <1.5 seconds |
| Image Processing | FLIR Proprietary Digital Detail Enhancement™ |
| Lens system | 9.1 mm; F/1.04 |
| Optical magnification | 1× |
| Field of View (H x V) | 24° × 19° |
| Digital e-Zoom | 1× – 4× continuous |
| Diopter Adjustment Range | -5 to +5 dpt |
| Focusing Range | 0.25 m to infinity |
| Eye Relief | 16 mm |
| Display | Quad-VGA (1280 x 960) FLCOS |
| Video Output | Digital Video |
| Internal memory | Up to 1,000 images and 2.5 hours of video on internal memory |
| Temperature Imaging Modes (Image Palettes) | White Hot, Black Hot, Rainbow HC, Ironbow, Sepia, Artic, Outdoor Alert |
| User Interface | |
|---|---|
| Control Panel Buttons | Configures Operational Settings:
|
| Diopter Adjustment Ring | Adjusts the Eyepiece Diopter |
| Interfacing | |
| USB-C Connector | Power In; Video out; Video and image files transfer |
| Power | |
| Battery Type | One CR123A 3V Lithium battery |
| Battery Life (Operating) | Up to 90 minutes at 20°C |
| USB Power | 5 VDC |
| Environmental | |
| Operating Temperature Range | -20°C to +50°C (-4°F to +122°F) |
| Storage Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Physical | |
| Weight | 210 g (0.46 lbs) |
| Size | 139 × 70 × 49 mm (5.5 × 2.7 × 1.9 in) |
| Color (housing) | Black |
| Country of Origin | USA |
| Package Includes | |
| Thermal Monocular, CR123A Battery, Lens Cloth, Hard Case | |
